Chapter 9:   Visual Aids Provided by Aerodrome Lighting

Section 9.1:   General

9.1.1AA Inset runway lights — early compliance with alternative new Chapter 9 standards

9.1.1AA.1 In this subsection:

new Chapter 9 means Chapter 9 of the new MOS.

new MOS means the Part 139 (Aerodromes) Manual of Standards 2019, registered on 6 September 2019.

selected new Chapter 9 standards means the standards contained in the following provisions of Chapter 9 of the new MOS:

(a) section 9.11, Elevated and inset lights;

(b) section 9.51, Runway edge lights;

(c) section 9.52, Characteristics of runway edge lights — non-instrument and non‑precision approach runway;

(d) section 9.53, Characteristics of runway edge lights — precision approach runway.

9.1.1AA.2 Despite anything else in this Chapter but subject to subsection 9.1.1AA.3, the selected new Chapter 9 standards are incorporated into this section as alternative standards for the matters dealt with in this Chapter that relate to the matters dealt with in the selected new Chapter 9 standards.

9.1.1AA.3 Subsection 9.1.1AA.2 takes effect for an aerodrome operator only in accordance with the operator’s written notice to CASA:

(a) stating that the operator will comply with some or all of the selected new Chapter 9 standards as if they were the standards under this Chapter; and

(b) unless all of the selected new Chapter 9 standards will be complied with:

(i) identifying, by relevant section number, the selected new Chapter 9 standards that the operator will comply with; and

(ii) identifying the specific location on the aerodrome of anything that is the subject of a relevant section; and

(iii) undertaking to comply with such of the other standards in this Chapter as are not inconsistent with the selected new Chapter 9 standards specified in the notice; and

(c) specifying the date, not earlier than the date of the notice and not later than 12 August 2020, on and from which the operator will comply with the selected new Chapter 9 standards.`

Note   This section is intended to allow the early application of some or all of the selected new Chapter 9 standards on an opt-in basis.

9.1.1                   Application and Definitions

9.1.1.1              Existing installed lighting systems must be operated and maintained in accordance with existing procedures. The standards in this Chapter do not apply to an existing lighting facility until:

(a)         the light fittings of a lighting system are being replaced with fittings of a different type. A lighting system in this case has the following meaning: lights on a section of taxiway (not all taxiways), lights on a threshold (not all thresholds) etc.

(b)         the facility is upgraded;

(c)          there is a change in the category of either:

(i)            aerodrome layout; or

(ii)          aerodrome traffic density; or

(d)         for operations of the kind mentioned in sub-subparagraph (i) or (ii)  — 29 May 2014, or an earlier date if an aerodrome operator so elects and tells CASA in writing of the election, being aerodrome operations supporting:

(i)            approaches in which the meteorological minima are as follows:

(A)        decision height or minimum descent height less than 200 ft;

(B)        visibility or runway visual range less than 550 m; or

(ii)          take-offs in visibility of less than 550 m; or

(e)         in exceptional circumstances, CASA determines that in the interests of safety a lighting facility must meet the standards of this Chapter.

9.1.1.2              For aerodrome lighting purposes, words used in this Chapter have the following meaning:

(a)         Aerodrome layout. This means the number of runways, taxiways and aprons at an aerodrome provided with lighting, and is divided into the following categories:

(i)            Basic – an aerodrome with one runway, with one taxiway to one apron area;

(ii)          Simple – an aerodrome with one runway, having more than one taxiway to one or more apron areas;

(iii)        Complex – an aerodrome with more than one runway, having many taxiways to one or more apron areas.

(b)         Aerodrome traffic density. This means the number of aircraft movements in the mean busy hour, and is divided into the following categories:

(i)            Light – not greater than 15 movements per runway or typically less than 20 total aerodrome movements;

(ii)          Medium – 16 to 25 movements per runway or typically between 20 to 35 total aerodrome movements;

(iii)        Heavy – 26 or more movements per runway or typically more than 35 aerodrome movements.

(c)          Upgrade of a facility has the same meaning as Upgrade (for an aerodrome facility) in Section 1.2.

(d)         Practicable. This term is used to allow CASA acceptance of variation to a standard due to insurmountable difficulties in the way of full compliance. If an aerodrome operator believes that compliance with a standard is impracticable, the onus rests with that operator to demonstrate the impracticability to the satisfaction of CASA.

9.1.2                   Standardisation of Aerodrome Lighting

9.1.2.1              It is important for pilot recognition and interpretation of aerodrome lighting systems, that standard configurations and colours be used.  The pilot always views the aerodrome lighting systems in perspective, never in plan, and has to interpret the guidance provided, while travelling at high speed, often with only a limited segment of the lighting visible.  As time will be limited to see and react to visual aids, particularly in the lower visibilities, simplicity of pattern, in addition to standardisation, is extremely important.

9.1.2.2              Pilot visual workload is best moderated by standardisation, balance and integrity of elements.  A ragged system with many missing lights can break the pattern from the pilot’s eye position, restricted as that position is by cockpit cut-off angles and possibly by patchy fog or other conditions.

9.1.2.2A As far as practicable, light fittings with different photometric characteristics must not be mixed in a lighting system.

9.1.2.3              For some aerodrome lighting systems, historic usage in various countries has resulted in more than one system being endorsed by ICAO.  In these circumstances, CASA may have endorsed some, but not all, ICAO systems for use in Australia.

9.1.2.4              Those systems not included in the MOS are not endorsed by CASA for use in Australia.  Australian pilot training gives pilots familiarity with Australian standard systems, but not with those systems that are not Australian standard.  It is important that aerodrome owners do not introduce non-endorsed or non-standard aerodrome lighting systems.

9.1.2.5              If the aerodrome owner has any doubts about a new system for their aerodrome, they are to check with CASA before proceeding.

9.1.3                   Lighting in the Vicinity of an Aerodrome

9.1.3.1              An existing or proposed non-aeronautical ground light in the vicinity of an aerodrome, which, by reason of its intensity, configuration or colour, might endanger the safety of aircraft, must be notified to the relevant CASA office for a safety assessment. In general, vicinity of the aerodrome can be taken as within a 6 km radius of the aerodrome.  Within this 6 km area, the following specific areas are the most likely to cause problems to aircraft operations:

(a)         for a code 4 instrument runway – within a rectangular area the length of which extends at least 4500 m before each threshold and the width of which is at least 750 m either side of the extended runway centreline;

(b)         for a code 2 or 3 instrument runway, within an area with the same width as (a) with the length extending to at least 3000 m from the threshold;

(c)          for other cases, within the approach area.

9.1.4                   Minimum Lighting System Requirements

9.1.4.1              At an aerodrome opened for night operations, at least the following facilities must be provided with appropriate lighting:

(a)         runways, taxiways and aprons intended for night use;

(ab) for taxiways used only by aeroplanes of code A or B — at least 1 such code A or B taxiway between the runway and the apron, with retroreflective markers permitted on the other code A or B taxiways;

(b)         at least one wind direction indicator;

(c)          if an obstacle within the applicable OLS area of the aerodrome is determined by CASA as requiring obstacle lighting, the obstacle lighting.

9.1.4.2              Where any approach end of a runway is intended to serve jet-propelled aeroplanes engaged in air transport operations, that approach end must be provided with an approved visual approach slope indicator system, in accordance with Paragraph 9.9.1. Additionally CASA may direct a runway to be provided with a visual approach slope indicator system if the circumstances surrounding the aerodrome require such an aid for aircraft safety purposes.

9.1.4.3              To avoid confusion at an aerodrome with more than one visual approach slope indicator system, the same type of approach slope indicator system must be used, in accordance with Paragraph 9.9.1.7.

9.1.4.4              A runway intended to serve Category I, II or III precision approach operations must be provided with an approach lighting system, where physically practicable, in accordance with the standards set out in this Chapter.

9.1.4.5              Movement area guidance signs intended for use at night must be illuminated in accordance with the standards set out in Chapter 8.

9.1.4.6              In certain circumstances additional lighting systems may be required at some aerodromes. For example, aerodrome beacons, visual docking guidance systems and runway threshold identification lights. Where provided, they shall be in compliance with the standards set out in this Chapter.

9.1.5                   Primary Source of Electricity Supply

9.1.5.1              Unless it is impracticable to do so, except for Paragraph 9.1.5.3 below, an aerodrome lighting system must be an electrically connected installation, with the primary source of electric power supplied by the local electricity supply authority.

9.1.5.2              Where the power supply of an aerodrome lighting system has to be derived from a source other than the normal reticulated electricity supply, a note to that effect shall be included in ERSA.

9.1.5.3              If, at an aerodrome intended for use by aircraft with less than 10 passenger seats engaged in air transport operations, power supply cannot be supplied by normal reticulated electricity, the supply may be derived from stand-alone generators or solar charged batteries.

9.1.6                   Electrical Circuitry

9.1.6.1              Where they are electrically connected, aerodrome ground lighting, which includes runway, taxiway, approach and visual approach slope indicator and MAGS lighting circuits, must be by means of the series current system.

9.1.6.2              Feeder cables and series isolating transformers must be installed below ground, being:

(a)         directly buried; or

(b)         in pits, ducts or similar receptacles.

9.1.6.3              Other electrical equipment and wiring, except for a light or light fitting, must not be installed above ground level in the manoeuvring area.

9.1.7                   Secondary Power Supply

9.1.7.1              Secondary power supply means electricity power supply which is connected to the load automatically on the failure of the primary power source. This may be derived by either of the following:

(a)         independent public power, which is a source of power supplying the aerodrome service from a substation other than the normal substation through a transmission line following a route different from the normal power supply route and such that the possibility of a simultaneous failure of the normal and independent public power supplies is extremely remote; or

(b)         generators, batteries etc. from which electric power can be obtained.

9.1.7.2              Secondary power must be provided to at least one runway at an aerodrome intended for Cat I precision approach operations, which would allow the operation of the following lighting systems:

(a)         approach lighting;

(b)         visual approach slope indicator;

(c)          runway edge;

(d)         runway threshold;

(e)         runway end;

(f)            essential taxiway and runway guard lights;

(g)         apron; and

(h)         obstacles, if any, lighting of which has been determined by CASA as essential for the safety of aircraft operations.

9.1.7.3              In addition to Paragraph 9.1.7.2 above, for an aerodrome intended for Cat II and III precision approach operations, the secondary power must be adequate for the lighting of the following:

(a)         runway centreline lights;

(b)         touchdown zone lights; and

(c)          all stop bars.

9.1.7.4              Secondary power must be provided to allow the operation of the following lighting systems at every runway from which aircraft are intended to take off in RVR conditions less than a value of 800 m:

(a)         runway edge lights;

(b)         runway end lights;

(c)          runway centreline lights, where provided;

(d)         all stop bars, when they are being used;

(e)         runway guard lights, when stop bars are not being used;

(f)            essential taxiway lights;

(g)         essential obstacle lights.

9.1.8                   Switch-over Time

9.1.8.1              The time interval between failure of the normal source of power and the complete restoration of the service following switch-over to secondary power is not to exceed, for:

(a)         Precision Approach Cat I visual aids – 15 seconds.

(b)         Precision Approach Cat II and III visual aids;

(i)            essential obstacle lights  -  15 seconds.

(ii)          essential taxiway lights  -  15 seconds.

(iii)        all other visual aids  -  1 second.

(c)          Runways meant for take-off in RVR conditions less than a value of 800 m;

(i)            essential obstacle lights  -  15 seconds.

(ii)          essential taxiway lights  -  15 seconds.

(iii)        runway edge lights, where runway center line lights are provided  -  15 seconds.

(iv)        runway edge lights, where runway center line lights are not provided  -  1 second.

(v)          runway end lights  -  1 second.

(vi)        runway center line lights  -  1 second.

(vii)      all stop bars  -  1 second.

9.1.8.2              For paragraph 9.1.8.1, alerting of the generators is an acceptable method of achieving the very short switch-over times.  For this method, before commencement of low visibility, or when weather conditions indicate that the Supply Authority electricity may be susceptible to interruption, the generator(s) are started, and when they come up to speed, the electrical load is connected to them.  In the unlikely event that a generator fails, the electrical system must automatically reconnect the load to the Supply Authority power.

9.1.8.3              Where alerting of the generators is the method adopted for meeting the switch-over times to support Precision Approach Cat II and III approaches, and take offs in RVR conditions less than a value of 800 m, real time information on the operating status of the generator set(s) and the Supply Authority power must be provided to ATC.

9.1.9                   Standby Power Supply

9.1.9.1              For lighting to be notified in ERSA as provided with standby power, the standby power supply may be either secondary power or standby generators which are manually activated.

9.1.9.2              Where the activation of the standby power is not automatic, procedures must be established to facilitate the introduction of standby power as soon as possible when the need arises.

9.1.10              Portable Lighting

9.1.10.1         Portable lights are only for temporary emergency use, and primarily for VFR operations.

9.1.10.2         Portable lights:

(a)         may comprise liquid fuel-burning flares or lamps, battery-powered electric lights or other similar devices; and

(b)         must have a substantially omni-directional light output.

9.1.10.3         If an aerodrome is notified in ERSA as having portable lighting, the following requirements apply:

(a)         the portable lights must always be in a serviceable condition and a state of readiness, including clean glasses and either fuel tanks filled or fresh batteries available;

(b)         appropriate persons must be trained to deploy the lights and put them into operation without delay when the need arises.

9.1.10.4         The portable lights must be:

(a)         at the same spacing as permanently installed lights; and

(b)         level so that the vertical axis is true; and

(c)          deployed in such a way that an aircraft can land into the wind.

9.1.10.5         For an aircraft arrival, the portable lights must be lit or switched on at least 30 minutes before the estimated time of arrival.

9.1.10.6         For an aircraft departure, the portable lights must be:

(a)         lit or switched on at least 10 minutes before the time of departure; and

(b)         retained after take-off:

(i)            for at least 30 minutes; or

(ii)          if no air-ground communication exists with the aircraft — for at least 1 hour.

9.1.11              Light Fixtures and Supporting Structures

9.1.11.1         All aerodrome light fixtures and supporting structures must be of minimum weight while being fit for the function, and frangible.

9.1.11.2         Supporting structures for approach lights also need to be of minimum weight and frangible, except that, in that portion of the approach lighting system beyond 300 m from the runway threshold:

(a)         where the height of a supporting structure exceeds 12 m, the frangibility requirement need apply to the top 12 m only; and

(b)         where a supporting structure is surrounded by non-frangible objects, only that part of the structure that extends above the surrounding objects need be frangible.

9.1.11.3         Where an approach light fixture or supporting structure is not in itself sufficiently conspicuous, it is to be suitably marked.

9.1.12              Elevated and Inset Lights

9.1.12.1         Elevated lights must be frangible and sufficiently low to preserve clearance for propellers and the engine pods of jet aircraft. In general, they should not be more than 360 mm above the ground.

9.1.12.2         Elevated lights, in general, are preferable to inset lights, because they provide a larger aperture from which light signals can be seen. Elevated lights must be used in all cases except:

(a)         where the use of inset lights is specified in this Chapter, or

(b)         where it is not practicable to use elevated lights.

9.1.12.3         Inset lights, also known as in-pavement lights, must not:

(a)         be constructed with sharp edges;

(b)         project more than 25 mm above the surrounding surface at locations where the lights will not normally come into contact with aircraft wheels, such as threshold lights, runway end lights and runway edge lights;

(c)          project more than 13 mm above the surrounding surface at locations which will normally come into contact with aircraft wheels, such as runway centreline lights, touch down zone lights and taxiway centreline lights.

9.1.12.4         The maximum surface temperature attained by an inset light must not exceed 160°C over a period of 10 minutes, if operating at maximum intensity while covered by an aircraft wheel.

9.1.12.5         The standard colour of the casings of elevated light units is yellow.

9.1.12.6         If some inset lights are included in a system of elevated lights, the photometric characteristics of the inset lights must be as close as practicable to those of the elevated lights.

9.1.13              Colour of Light Shown

9.1.13.1         The colour of the light shown must be in accordance with the applicable standard specified in Section 9.2.

9.1.13.2         To ensure uniformity of visual appearance, light fittings using different filter technology must not be mixed (e.g. dichroic filters, other absorption filters, light emitting diode (LED), etc.) in such a way as to create inconsistency in either light colour or intensity when viewed by pilots from a moving aircraft on a runway or taxiway.

9.1.14              Light intensity and Control

9.1.14.1         At an aerodrome with an air traffic service (ATS), the following lighting systems, if provided, must be equipped with an intensity control so that the ATS can select light output to suit ambient conditions and avoid dazzling pilots:

(a)         approach lighting system;

(b)         approach slope guidance system;

(c)          runway edge, threshold and end lights;

(d)         runway centreline lights;

(e)         runway touchdown zone lights;

(f)            taxiway lights.

9.1.14.2         At an aerodrome with a Certified Air-Ground Radio Operator (CAGRO), a Unicom operator, or similar responsible person with 2-way radio communications with aircraft, the aerodrome may choose to provide aerodrome lighting intensity control for use by that person.

9.1.14.3         Intensity must be capable of being varied in 5 or 6 stages, for the following systems:

(a)         approach lighting systems

(b)         visual approach slope indicator systems;

(c)          high intensity runway edge, threshold and end lights;

(d)         runway centreline lights;

(e)         runway touchdown zone lights.

9.1.14.4         Intensity must be capable of being varied in at least 3 stages, for medium intensity runway edge, threshold and end lights.

9.1.14.5         If a runway is equipped with both high and medium intensity runway edge lighting, the 3 lowest intensity stages shall be provided by the medium intensity system.

9.1.14.6         For taxiway lights:

(a)         Taxiway centreline lights with a main beam average intensity of the order of 50 cd or less, 3 stages of intensity control will normally be sufficient.

(b)         Taxiway centreline lights with main beam average intensity of the order of 100 cd or greater will normally require more than 3 stages of intensity control, or alternatively to have the maximum light output permanently reduced by fixing the maximum intensity stage at less than 100% of the rated output of the light.  One hundred percent output of these lights has been found to be too bright for normal Australian conditions.

(c)          Taxiway edge lights do not normally require separate intensity control.  It is common for taxiway edge lights to be installed on the same electrical circuit as the low or medium intensity runway edge lights, and to be controlled by the runway light control.

9.1.14.7         Intensity must be reduced from each successive stage to an order of 25-33%. This is based on the fact that a change of that magnitude is required for the human eye to detect that a change has occurred. For 6 stages of intensities, they should be of the order of: 100%, 30%, 10%, 3%, 1% and 0.3%.

9.1.14.8         At an aerodrome where the lighting is provided with intensity settings but the ATS, CAGRO, Unicom operator, or similar responsible person, does not provide 24 hours coverage and:

(a)         the operator leaves the lights turned on all night; or

(b)         the lights are controlled by a PAL out of hours;

the recommended stage of intensity, which provides adequate illumination but will not dazzle pilots is stage 2.

9.1.14.9         If a lighting system is operated by an ATS provider or a similar responsible person (the lighting system operator):

(a)         an automatic monitoring system must provide the lighting system operator with the following information:

(i)            an indication of each lighting system that is on;

(ii)          the intensity of each lighting system that is on;

(iii)        any fault in a lighting system used to control aircraft movement; and

(b)         the information must be automatically relayed to the lighting system operator position of the operator responsible for the lighting system.

9.1.14.9A For subparagraph 9.1.14.9 (b), the information must be automatically relayed within the following time frames:

(a)         for a stop bar at a runway-holding position — 2 seconds;

(b)         for all other types of visual aids — 5 seconds.

9.1.14.10     At an aerodrome with Low Intensity Runway Edge Lighting Systems, in accordance with Paragraph 9.10.1.1(a), the light fittings used must be in compliance with Paragraph 9.10.6. However, it is permissible with these systems, at commissioning, to adjust and then set the system current to a value other than the rated current value. This is to enable the actual light output of the light units to be set to a suitable light level to match the specific conditions of the particular aerodrome, to harmonise with the intensity of visual approach slope indicators if present, and minimise the likelihood of dazzling pilots. Where the system current is set to a value other than the rated current, the actual value of current set must be recorded in the Aerodrome Manual.

Table 9.1‑1: Guidance on selecting series line currents for various intensity stages

Notes:

1. All values are for the Industry Standard system of 6.6A series current for full rated light output, (except Approach Lights using 12.5 A/6.6 A series isolating transformers), and would not be relevant for lighting systems installed to other electrical parameters.
2. The current values are true root mean square (RMS) amperes.
3. The intensity percentages are approximate only.  At the higher Stages (5 and 6) it is more important to maintain the intensity ratio to runway edge lights as given in paragraphs 9.8.1.2 and 9.11.1.4.  At the lower intensity stages, as used during good visibility conditions, maintaining those intensity ratios tends to result in glare for pilots, and so lower ratios are suggested.

9.1.15              Commissioning of Lighting Systems

9.1.15.1         Commissioning means the formal process by which the performance of the lighting system is confirmed by CASA, or a qualified person, as meeting the specifications.  Qualified person in this case means:

(a)         For ground check of compliance with electrical specifications and CASA standards — an electrical engineer or licensed electrician with such aerodrome lighting knowledge and experience of aerodrome lighting as equips him or her to competently perform the compliance checks.

(b)         For flight checking of compliance with operational specifications — pilot approved by CASA as having the competency to conduct flight check.

9.1.15.2         All aerodrome lighting systems must be commissioned by ground check before they are brought into use.

9.1.15.2A For commissioning, evidence that light fitting types, models and versions comply with the standards for photometric and other characteristics as specified in this Chapter must be in the form of test reports from a laboratory that is accredited by one of the following as having the competence to carry out the type of measurement involved:

(a)         the National Association of Testing Authorities (NATA);

(b)         an overseas accrediting authority which has a mutual recognition agreement with NATA.

9.1.15.3         The ground check of a visual approach slope indicator system must include verification of vertical and horizontal angles of light signal changes by a person having civil engineering or surveying qualification and experience.

9.1.15.4         The commissioning of the following lighting systems, in addition to the ground check, must include flight checks of:

(a)         approach lighting system;

(b)         runway lighting system for instrument runways;

(c)          visual approach slope indicator system

(i)            used by jet propelled aeroplanes engaged in air transport operations; or

(ii)          installed on CASA direction, in accordance with Paragraph 9.9.1.1(b);

(d)         pilot-activated lighting system (PAL).

9.1.15.5         For a visual approach slope indicator system specified in Paragraph 9.1.15.4, that is provided for temporary use only, for example due to a temporary displaced threshold, or during works in progress, the requirement for a flight check is waived.

9.1.15.6         For those systems specified in Paragraph 9.1.15.4, the aerodrome operator shall forward duly certified ground check and flight check reports to the relevant CASA office.  If CASA is satisfied with the reports, CASA will approve the issue of a permanent NOTAM. Information to be supplied by aerodrome operator for inclusion in the permanent NOTAM includes:

(a)         For visual approach slope indicator system;

(i)            runway designation;

(ii)          type of system, and for AT-VASIS and PAPI systems, the side of runway, as seen by approaching pilot, that the aid is installed;

(iii)        where the axis of the system is not parallel to the runway centreline, the angle of displacement and the direction of displacement, i.e. left or right;

(iv)        approach slope; and

(v)          minimum eye height over threshold, for the on-slope signal.

(b)         For a PAL;

(i)            the PAL frequency; and

(ii)          any notes explaining PAL operation, for example where the PAL only controls certain visual aids at the aerodrome.

9.1.15.7         For those systems not specified in Paragraph 9.1.15.4, the aerodrome operator must use the duly certified ground check as sufficient evidence of compliance with standards to initiate a permanent NOTAM.

9.1.15.8         At any time after commissioning, CASA may direct the ground checking and/or the flight checking of a lighting system specified in Paragraph 9.1.15.4, following substantial changes to the system, or on receipt of adverse reports on the performance of the system from pilots or aircraft operators.  Examples of substantial changes to the system include:

(a)         removal and replacement of 50% or more of the light fittings, at the same time, of an approach or runway lighting system;

(b)         removal and replacement of one or more light units of a PAPI system;

(c)          removal and replacement of two or more light units, at the same time, of an AT-VASIS system; and

(d)         removal and replacement of the receiver unit from a PAL.

9.1.15.9         Before a runway is opened for night use, the aerodrome operator must assess obstacles within the obstacle limitation surface area of the aerodrome for obstacle lighting purposes, particularly if the obstacles are within 3 km of the aerodrome.

9.1.15.10     Copies of all ground check reports, flight check reports, and light fitting laboratory test reports used to support the commissioning of lighting systems must be:

(a)         filed in the aerodrome operator’s Aerodrome Manual; and

(b)         kept in the custody, or under the control, of the aerodrome operator for as long as the relevant lighting system remains in service.

Section 9.2:   Colours for Aeronautical Ground Lights

9.2.1                   General

9.2.1.1              The following specifications define the chromaticity limits of colours to be used for aerodrome lighting.

9.2.1.2              The chromaticities are expressed in terms of the standard observer and co-ordination system adopted by the International Commission on Illumination (CIE).

9.2.2                   Chromaticities

9.2.2.1              The chromaticities of aerodrome lights must be within the following boundaries:

CIE Equation (see Figure 9.2‑1)

(a)         Red

Purple boundary y = 0.980 - x

Yellow boundary y = 0.335

(b)         Yellow

Red boundary y = 0.382

White boundary y = 0.790 - 0.667x

Green boundary y = x - 0.120

(c)          Green

Yellow boundary y = 0.726 - 0.726x

White boundary x = 0.650y

(except for visual docking guidance systems)

White boundary x = 0.625y - 0.041

(for visual docking guidance systems)

Blue boundary y = 0.390 - 0.171x

(d)         Blue

Green boundary y = 0.805x + 0.065

White boundary y = 0.400 - x

Purple boundary x = 0.600y + 0.133

(e)         White

Yellow boundary x = 0.500

Blue boundary x = 0.285

Green boundary y = 0.440 and y = 0.150 + 0.640x

Purple boundary y = 0.050 + 0.750x and y = 0.382


(f)            Variable White

Yellow boundary x = 0.255 + 0.750y and x = 1.185 - 1.500y

Blue boundary x = 0.285

Green boundary y = 0.440 and y = 0.150 + 0.640x

Purple boundary y = 0.050 + 0.750x and y = 0.382

9.2.3                   Discrimination Between Coloured Lights

9.2.3.1              If there is a requirement to discriminate yellow and white from each other, they must be displayed in close proximity of time or space as, for example, by being flashed successively from the same beacon.

9.2.3.2              If there is a requirement to discriminate yellow from green or white, as for example with exit taxiway centreline lights, the ‘y’ co-ordinate of the yellow light must not exceed a value of 0.40.

9.2.3.3              The colour variable white is intended to be used only for lights that are to be varied in intensity, e.g. to avoid dazzling. If these lights are to be discriminated from yellow lights, the lights must be designed and operated so that:

(a)         the ‘x’ co-ordinate of the yellow is at least 0.050 greater than the ‘x’ co‑ordinate of the white; and

(b)         the disposition of the lights is such that the yellow lights are displayed simultaneously and in close proximity to the white lights.

Figure 9.2‑1: Colours for aeronautical ground lights

Section 9.3:   Pilot Activated Lighting Systems

9.3.1                   General

9.3.1.1              If a pilot activated lighting (PAL) system is used to activate aerodrome lighting, the PAL is to turn ON all the lighting facilities which are required to be illuminated for night operations, unless the illumination of a required facility is achieved by other means, e.g. obstacle lights activated by photo-electric switches.

9.3.1.2              Where PAL is used to activate visual approach slope guidance systems (T‑VASIS or PAPI):

(a)         activation of the PAL during daytime is to turn the visual approach slope guidance system ON to Day intensity, and leave all other aerodrome lighting extinguished;

(b)         activation of the PAL during twilight is to turn the visual approach slope guidance system ON to Twilight intensity, and turn all other aerodrome lighting on to the only intensity available, or to Night intensity if multiple intensities are available;

(c)          activation of the PAL during night-time is to turn the visual approach slope guidance system ON to Night intensity, and turn all other aerodrome lighting on to the only intensity available, or to Night intensity if multiple intensities are available;

(d)         once the lighting has been activated by the PAL, appropriate changes from Day to Twilight to Night intensities must take place automatically;

(e)         the appropriate changes from Day to Twilight to Night operation shall take place under the control of a light sensitive switch or similar device;

(f)            intensity must be the following percentage of full intensity:

(i)            Day intensity — nominally 100%;

(ii)          Twilight intensity — nominally 10%;

(iii)        Night intensity — nominally 1%.

9.3.1.3              The PAL must activate an aerodrome lighting system on detection of a coded carrier frequency signal from an aircraft air/ground VHF transmitter.

9.3.1.4              On receipt of the coded signal, the PAL control unit must go into the operate mode for a pre-set period. The minimum period that the lights remain ON shall be 30 minutes.

9.3.1.5              Ten minutes before the aerodrome lighting system is due to turn OFF, the PAL must cause the lights of at least the primary Illuminated Wind Direction Indicator (IWDI), in accordance with Paragraph 9.6.1.10, to commence to flash at approximately 50 cycles per minute (approximately 0.6 seconds ON and 0.6 seconds OFF), and continue to flash until either:

(a)         the PAL system switches OFF, and all aerodrome lighting, including the IWDI lights, is extinguished; or

(b)         the PAL system has been reset for another ON period.

9.3.1.6              When in operate mode (including the last 10 minutes) the receipt of another correctly coded signal must reset the PAL system to the beginning of the pre-set period.

9.3.2                   VHF Carrier Activation Code

9.3.2.1              The code required to activate the PAL system must be generated when the microphone button of the aircraft radio air/ground VHF transmitter is depressed and a radio frequency carrier signal is produced.

9.3.2.2              The correct code is to consist of three bursts of carrier signal each anywhere between 1 and 5 seconds long, with the last two code bursts completed within 24 seconds of the end of the first burst.

9.3.2.3              The gap between code bursts that the detector can tolerate shall be 0.1 seconds. (This is less than the time it takes to release and depress the aircraft microphone button.)

9.3.3                   VHF Carrier Detector Technical Requirements

9.3.3.1              The VHF carrier detector must accept a carrier signal over the frequency range of 118 MHz to 136 MHz.

9.3.3.2              The receiver must be crystal controlled at a single frequency within the frequency range, with a channel separation of 25 kHz.

9.3.3.3              Only allocated frequencies must be used, to maintain order in the air/ground VHF band, and prevent interference to other facilities or users in the vicinity.

9.3.3.4              The frequency stability must be within ±0.0010% over the temperature range of -10°C to +70°C.

9.3.3.5              The minimum detectable input signal of the VHF carrier detector must be adjustable over a range to suit the operational requirements.

9.3.3.6              Under normal circumstances, to ensure activation of the PAL system by aircraft at approximately 15 NM from the aerodrome, the receiver sensitivity must be set at not less than 15 µV.

9.3.3.7              The VHF carrier detector bandwidth is to have the following characteristics:

±7.5 kHz within 3 dB of nominal

±16 kHz greater than 60 dB below nominal;

the spurious response is to be no less than 80 dB below nominal.

9.3.4                   Inputs to the PAL

9.3.4.1              The PAL must be capable of having the following inputs:

(a)         radio frequency activation signal, as described above;

(b)         manual activation of the PAL. An ON/OFF switch must be provided for manual activation. When the switch is selected to ON the lighting system will be activated and remain on. When the switch is selected to OFF the PAL system must go into operate mode for the full timing cycle, including the ten minute turn-off warning.  This is intended for use by authorised ground personnel, departing pilots, and maintenance technicians;

(c)          remote control override of the PAL. If a PAL is provided at a controlled aerodrome, the circuitry of the PAL system must be such that when the controller is on duty, the PAL will be overridden by the controller.

9.3.5                   Fail-safe Arrangements with PAL system

9.3.5.1              The circuitry of the PAL system must be so designed that if the PAL fails for whatever reason, the aerodrome lighting can still be provided. This can be achieved by either:

(a)         the lighting facilities being automatically turned ON if the PAL fails; or

(b)         the provision of a by-pass switch to allow manual activation of the lights.

9.3.5.2              The mains supply to the equipment may be subject to electrical transients, typical of rural electrical distribution systems. The PAL system must be so designed that the electrical transients have no effect on the PAL system.

9.3.5.3              Following a PAL failure, on restitution of power the PAL must automatically commence a complete ‘Light ON’ cycle.

9.3.6                   Access to Manual Switches

9.3.6.1              If the manual switches provided for PAL are either key operated switches, or enclosed in an area that requires key access, sufficient numbers of keys must be provided to persons who may have reason to gain access to the manual switches in the event of the PAL failing to respond to aerial VHF signal from incoming aircraft.

9.3.6.2              The following persons are likely to be called upon to manually activate the aerodrome lighting:

(a)         the agents of the airlines using the aerodrome;

(b)         a representative from local operators of flying schools, fuelling agents, or aircraft maintenance organisations;

(c)          representatives from the local hospital and/or emergency services;

(d)         local police;

(e)         where available, responsible person or persons living close to the aerodrome.

9.3.7                   Receiving Antenna

9.3.7.1              The PAL receiving antenna must be so located such that it will receive activating signals from aircraft both in the air and on the aerodrome movement area.

9.3.7.2              The PAL must be so designed that it will operate satisfactorily when connected to an antenna with the following specifications:

(a)         unity gain with respect to a dipole;

(b)         vertical polarisation;

(c)          omnidirectional radiation pattern in the horizontal plane;

(d)         voltage standing wave ratio when matched to the PAL antenna input of not greater than 1.5:1, over the frequency range of 118 to 136 MHz;

(e)         height of the mounting above local ground level not less than 4.5 m.

9.3.8                   PAL with Audio Acknowledgment

9.3.8.1              Aerodrome operators are encouraged to use a PAL with message acknowledgment capability, which can provide positive response on receipt of pilot transmission and caution if the lighting cycle is within the 10 minute switch off phase.

9.3.8.2              Where provided, the broadcast message must be brief, to minimise congestion on the frequency.

Section 9.4:   Obstacle Lighting

9.4.1                   General

9.4.1.1              Under the Civil Aviation Regulations, CASA may determine that an object or a proposed object which intrudes into navigable airspace requires, or will be required to be provided with, obstacle lighting. Responsibility for the provision and maintenance of obstacle lighting on a building or structure rests with the owner of the building or structure. Within the limits of the obstacle limitation surfaces of an aerodrome, responsibility for the provision and maintenance of obstacle lighting on natural terrain or vegetation, where determined necessary for aircraft operations at the aerodrome, rests with the aerodrome operator.

9.4.1.2              In general, an object in the following situations would require to be provided with obstacle lighting unless CASA, in an aeronautical study, assesses it as being shielded by another lit object or that it is of no operational significance:

(a)         for a runway intended to be used at night:

(i)            if the object extends above the take-off climb surface within 3000 m of the inner edge of the take-off climb surface;

(ii)          if the object extends above the approach or transitional surface within 3000 m of the inner edge of the approach surface;

(iii)        if the object extends above the applicable inner, conical or outer horizontal surfaces;

(iv)        if the object extends above the obstacle protection surface of the T-VASIS or PAPI installed at the aerodrome;

(v)          a vehicle or other mobile objects, excluding aircraft, on the movement area, except aircraft service equipment and vehicles used only on aprons;

(vi)        obstacles in the vicinity of taxiways, apron taxiways or taxilanes, except that obstacle lights are not to be installed on elevated ground lights or signs in the movement area.

(b)         outside the obstacle limitation surfaces of an aerodrome, if the object is or will be more than 110 m above ground level.

9.4.1.3              Owners of tall buildings or structures below the obstacle limitation surfaces, or less than 110 m above ground level, may, of their own volition, provide obstacle lighting to indicate the presence of such buildings or structures at night. To ensure consistency and avoid any confusion to pilots, the obstacle lighting provided needs to conform with the standards specified in this Chapter.

9.4.1.4              In circumstances where the provision of obstacle marking is impracticable, obstacle lighting may be used during the day in lieu of obstacle marking.

9.4.2                   Types of Obstacle Lighting and Their Use

9.4.2.1              Three types of lights are used for lighting obstacles. These are low intensity, medium intensity and high intensity lights, or a combination of such lights.

9.4.2.2              Low intensity obstacle lights are steady red lights and are to be used on non-extensive objects whose height above the surrounding ground is less than 45 m.

9.4.2.3              Medium intensity obstacle lights are to be used either alone or in combination with low intensity lights, where:

(a)         the object is an extensive one;

(b)         the top of the object is 45 m or more above the surrounding ground; or

(c)          CASA determines that early warning to pilots of the presence of the object is desirable.

9.4.2.4              There are three types of medium intensity obstacle lights:

(a)         Flashing white light.  Likely to be unsuitable for use in environmentally sensitive locations, and near built-up areas.  May be used in lieu of obstacle markings during the day to indicate temporary obstacles in the vicinity of an aerodrome, for example construction cranes, etc. and are not to be used in other applications without specific CASA agreement.

(b)         Flashing red light, also known as a hazard beacon.  Is suitable for all applications, and is extensively used to mark terrain obstacles such as high ground.

(c)          Steady red light.  May be used where there is opposition to the use of a flashing red light, for example in environmentally sensitive locations.

9.4.2.5              High intensity obstacle lights are flashing white lights used on obstacles that are in excess of 150 m in height. As high intensity obstacle lights have a significant environmental impact on people and animals, it is necessary to consult with interested parties about their use. High intensity obstacle lights may also be used during the day, in lieu of obstacle markings, on obstacles that are in excess of 150 m in height, or are difficult to be seen from the air because of their skeletal nature, such as towers with overhead wires and cables spanning across roads, valleys or waterways.

9.4.3                   Location of Obstacle Lights

9.4.3.1              One or more obstacle lights are to be located as close as practicable to the top of the object. The top lights are to be arranged so as to at least indicate the points or edges of the object highest above the obstacle limitation surface.

9.4.3.2              In the case of a chimney or other structure of like function, the top lights are to be placed sufficiently below the top (nominally 1.5 m to 3 m) so as to minimise contamination by smoke, etc.

9.4.3.3              In the case of a tower or antenna structure to be provided with high intensity obstacle lights, and the structure has an appurtenance such as a rod or antenna extending greater than 12 m above the structure, and it is not practicable to locate the high intensity obstacle light on top of the appurtenance, the high intensity obstacle light is to be located at the highest practicable point and, if practicable, have a medium intensity obstacle light (flashing white) mounted on the top.

9.4.3.4              In the case of an extensive object or a group of closely spaced objects, top lights are to be displayed at least on the points or edges highest in relation to the obstacle limitation surfaces, so as to indicate the general definition and extent of the objects.  If two or more edges are at the same height, the edge nearest the runway threshold is to be lit.  Where low intensity lights are used, they are to be spaced at longitudinal intervals not exceeding 45 m.  Where medium intensity lights are used, they are to be spaced at longitudinal intervals not exceeding 900 m, and at least three are to be displayed on one side of the extensive obstacle to indicate a line of lights.

9.4.3.4A In the case of a wind farm whose wind turbines must have obstacle lighting, medium intensity lights are to be installed as follows:

(a)         if any part of the wind turbine, including the rotating blades, penetrates the obstacle limitation surface (OLS) of an aerodrome, top lights must mark the highest point reached by the rotating blades;

(b)         if the rotating blades do not penetrate the OLS, the top lights must be placed on top of the generator housing;

(c)          obstacle lights must be provided on a sufficient number of individual wind turbines to indicate the general definition and extent of the wind farm, with intervals between lit turbines not exceeding 900 m;

(d)         all of the obstacle lights on a wind farm must be synchronised to flash simultaneously;

(e)         the downward component of obstacle lighting may be shielded to the extent mentioned in either or both of the following sub-subparagraphs:

(i)            so that no more than 5% of the nominal light intensity is emitted at or below 5o below horizontal;

(ii)          so that no light is emitted at or below 10o below horizontal;

(f)            to prevent obstacle light shielding by the rotating blades, 2 lights must be provided on top of the generator housing in a way that allows at least 1 of the lights to be seen from every angle in azimuth.

9.4.3.5              When the obstacle limitation surface concerned is sloping and the highest point above the obstacle limitation surface is not the highest point of the object, additional obstacle lights are to be placed on the highest part of the object.

9.4.3.6              When the top of the obstacle is more than 45 m above the level of the surrounding ground or the elevation of the tops of nearby buildings (when the obstacle is surrounded by buildings), the top lights are to be medium intensity lights. Additional low intensity lights are to be provided at lower levels to indicate the full height of the structure. These additional lights are to be spaced as equally as possible, between the top lights and ground level or the level of tops of nearby buildings, as appropriate. The spacing between the lights is not to exceed 45 m.

9.4.3.7              Where high intensity obstacle lights are used on an object other than a tower supporting overhead wires or cables, the spacing between the lights is not to exceed 105 m. Where the high intensity obstacle lights are used on a tower supporting wires or cables, they are to be located on three levels:

(a)         at the top of the tower;

(b)         at the lowest level of the catenary of the wires or cables; and

(c)          at approximately midway between the two levels.

9.4.3.8              The number and arrangement of lights at each level to be marked is to be such that the obstacle is indicated from every angle of azimuth. Where a light is shielded in any direction by an adjacent object, the light so shielded may be omitted but additional lights may be required in such a way so as to retain the general definition of the obstacle.

9.4.3.9              Illustrations of typical lighting of obstacles are shown below.

Figure 9.4‑1: Typical lighting of tall obstructions

Figure 9.4‑2: Typical lighting of a group of obstructions

Figure 9.4‑3: Typical lighting of horizontally extended obstructions

Figure 9.4‑4: Typical lighting of towers and large obstructions

9.4.4                   Natural Obstacles

9.4.4.1              Natural obstacles such as terrain and vegetation are normally extensive and the need for obstacle lighting will be assessed by CASA on an individual case basis. Where required, obstacle lights are to be provided as follows:

(a)         if the obstacle is located within the approach area, the portion of the obstacle which is within the approach area is to be treated in the same manner as man-made obstacles for the provision of obstacle lights;

(b)         if the obstacle is located outside the approach area, it is to be marked by sufficient number of lights on the highest and most prominent features, so placed that the obstacle can be readily identified.

9.4.5                   Temporary Obstacles

9.4.5.1              At night and in poor visibility conditions, temporary obstacles in the approach area or on the movement area are to be marked with permanent or temporary red obstacle lights. The lights are to be so arranged that they clearly mark the height, limits and extent of the obstacle.

9.4.6                   Characteristics of Low Intensity Obstacle Lights

9.4.6.1              Low intensity obstacle lights, for general applications, are to have the following characteristics:

(a)         fixed lights showing red;

(b)         a horizontal beam spread that results in 360° coverage around obstacle;

(c)          a peak intensity of 100 cd minimum;

(d)         a vertical beam spread (to 50% of peak intensity) of 10°;

(e)         a vertical distribution with 100 cd minimum at +6° and +10° above the horizontal; and

(f)            not less than 10 cd at all elevation angles between –3° and +90° above the horizontal.

9.4.6.2              Low intensity obstacle lights, used to indicate taxiway obstacles or unserviceable areas of the movement area, are to have a peak intensity of 10 cd minimum.

9.4.7                   Characteristics of Medium Intensity Obstacle Lights

9.4.7.1              Medium intensity obstacle lights are to be flashing or steady red lights or flashing white lights, visible in all directions in azimuth.

9.4.7.2              The frequency of flashes is to be between 20 and 60 flashes per minute.

9.4.7.3              The peak effective intensity is to be 2,000  25% cd with a vertical distribution as follows:

(a)         vertical beam spread is to be 3 minimum (beam spread is defined as the angle between two directions in a plane for which the intensity is equal to 50% of the lower tolerance value of the peak intensity);

(b)         at -1 elevation, the intensity is to be 50% minimum and 75% maximum of lower tolerance value of the peak intensity; and

(c)          at 0 elevation, the intensity is to be 100% minimum of the lower tolerance value of the peak intensity.

9.4.7.4              Where the flashing white light is used in lieu of obstacle marking during the day to indicate temporary obstacles in the vicinity of an aerodrome, in accordance with Paragraph 9.4.2.4(a), the peak effective intensity is to be increased to 20,000  25% cd when the background luminance is 50 cd/m² or greater.

9.4.8                   Characteristics of High Intensity Obstacle Lights

9.4.8.1              High intensity obstacle lights are flashing white lights.

9.4.8.2              The effective intensity of a high intensity obstacle light located on an object other than a tower supporting overhead wires or cables is to vary depending on background luminance as follows:

(a)         200,000  25% cd effective intensity at a background luminance of above 500 cd/m² (day);

(b)         20,000   25% cd effective intensity at a background luminance of between 50-500 cd/m² (dusk or dawn);

(c)          2,000  25% cd effective intensity at a background luminance of below 50 cd/m² (night).

9.4.8.3              The effective intensity of a high intensity obstacle light located on a tower supporting overhead wires or cables is to vary depending on background luminance as follows:

(a)         100,000  25% cd effective intensity at a background luminance of above 500 cd/m² (day);

(b)         20,000  25% cd effective intensity at a background luminance of between 50-500 cd/m² (dusk or dawn);

(c)          2,000  25% cd effective intensity at a background luminance of below 50 cd/m² (night).

9.4.8.4              High intensity obstacle lights located on an object other than a tower supporting overhead wires or cables are to flash simultaneously at a rate between 40-60 flashes per minute.

9.4.8.5              High intensity obstacle lights located on a tower supporting overhead wires or cables are to flash sequentially; first the middle light, second the top light, and last the bottom light. Cycle frequency is to be 40 - 60 per minute and the intervals between flashes of lights are to approximate the following ratios:

Table 9.4‑1

9.4.8.6              To minimise environmental impact, unless otherwise directed by CASA, the installation setting angles for high intensity obstacle lights are to be:

Table 9.4‑2

9.4.9                   Floodlighting of Obstacles

9.4.9.1              Where the installation of normal obstacle lights is deemed impracticable or undesirable for aesthetic or other reasons, floodlighting of obstacles may be an acceptable alternative. However, floodlighting is not to be used unless with the concurrence of the relevant CASA office.

9.4.9.2              In general, floodlighting is not suitable if:

(a)         the structure is skeletal as a substantially solid surface or cladding with satisfactory reflectance properties are required; or

(b)         there is high background lighting level.

9.4.9.3              The floodlighting colour is to be white. Illumination of the obstacle is to cover all directions of azimuth over the full height portion of the obstacle which needs to be illuminated and is to be uniform around the circumferences of the obstacle.

9.4.9.4              The minimum level of luminance is to be 5 cd/m² at all points.

9.4.9.5              The light fittings are to be spaced evenly around the structure, at not more than 120° with at least two fittings at each location. At each location the fittings are to be on separate circuits and separately fused.

9.4.10              Ongoing Availability of Obstacle Lights

9.4.10.1         It is important that obstacle lights provided are in working condition when they are required to be on. The owners of obstacle lights needs to establish a pro-active maintenance program to minimise light outage.

9.4.10.2         For obstacle lights located within the obstacle limitation surface area of the aerodrome, the aerodrome operator is to establish a monitoring program, which is to include:

(a)         visual observation of the obstacles lights at least once every 24 hours (see note); and

(b)         where a medium or high intensity obstacle light is located such that it is not readily observable visually:

(i)            establish a procedure whereby such a light would be visually monitored within every 24 hour period; or

(ii)          install an automatic visual or audio alarm indicator at an aerodrome location generally occupied by aerodrome personnel.

9.4.10.3         For an obstacle located within the OLS area of the aerodrome, the following requirements apply:

(a)         if there is an obstacle light outage, the aerodrome operator must:

(i)            immediately request the NOTAM office to advise pilots of the details of the outage; and

(ii)          as soon as practicable liaise with the owner of the obstacle light so that the outage is repaired as quickly as practicable;

(b)         if the aerodrome has been notified by CASA that it must close upon the failure of a specified obstacle light considered by CASA to be essential for safety, the aerodrome operator must immediately notify CASA of the failure.

9.4.10.3A The aerodrome operator’s Aerodrome Manual must include:

(a)         the procedures to be followed when an obstacle light outage occurs; and

(b)         details of any CASA notification that the aerodrome must close upon the failure of a specified obstacle light considered by CASA to be essential for safety.

9.4.10.4         For obstacles located outside the obstacle limitation surface area of an aerodrome, the owners of the lights need to establish a program to monitor the lights and report light failures. The reporting point for obstacle light failure is normally the nearest CASA office. When an obstacle light is unserviceable, the matter needs to be reported immediately to the relevant CASA office so that a NOTAM warning pilots of the light outage can be initiated.

Section 9.5:   Aerodrome Beacons

9.5.1                   General

9.5.1.1              An aerodrome beacon is to be provided if it is determined by CASA that such a visual cue is operationally necessary.

9.5.1.2              The following factors will be used in determining operational necessity:

(a)         whether the aerodrome is intended to be used at night by aircraft navigating predominantly by visual means;

(b)         the type and quantity of air traffic;

(c)          the presence of other visual or radio aids;

(d)         whether the location is subject to frequent periods of reduced visibility;

(e)         whether it is difficult to locate the aerodrome from the air due to surrounding lights or terrain.

9.5.1.3              Where provided, the aerodrome beacon is to be located on or adjacent to the aerodrome in an area of low ambient background lighting. In addition, the aerodrome beacon is to be sited so that it is neither shielded by obstacles nor dazzling to a pilot making an approach to land.

9.5.1.4              At international aerodromes or aerodromes in built-up areas, the aerodrome beacon is to show two flashes, one white and the other coloured, so that they produce alternate white and colour flashes. For land aerodromes, the colour is to be green, for water aerodromes, the colour is to be yellow.

9.5.1.5              At other locations, white flashes only is satisfactory.

9.5.1.6              The frequency of total flashes must be from 20 to 30 per minute.

9.5.1.7              The light from the beacon is to be visible from all angles of azimuth.

9.5.1.8              The light intensity distribution of the aerodrome beacon must be in accordance with Table 9.5‑1:

Table 9.5‑1: Aerodrome beacon light intensity distribution

9.5.1.9              The effective intensity of colour flashes is to be not less than 0.15 times the intensity of the white flashes at the corresponding angle of elevation.

9.5.1.10         Where provided, information on the colour coding, flash rate and location (if not in the immediate vicinity of the aerodrome) of the aerodrome beacon is to be published in the aerodrome ERSA entry.

Section 9.6:   Illuminated Wind Direction Indicator

9.6.1                   General

9.6.1.1              At an aerodrome intended for night use, at least one wind direction indicator is to be lit.

9.6.1.2              If a WDI is provided in the vicinity of a runway threshold to provide surface wind information for pilots engaged in instrument straight-in approach and landing operations, and such operations are to be conducted at night, then the wind direction indicator is to be lit.

9.6.1.3              An illuminated wind direction indicator (IWDI) must be illuminated by floodlighting from above.

9.6.1.3A An IWDI installed on or after 1 July 2011 must be illuminated by at least 4 lamp units which together provide between 100 and 600 lux illumination on any point of the horizontal plane passing through the top of the IWDI sleeve at the supporting pole end for the 360o area swept by the fully extended sleeve.

9.6.1.3B The lighting must have:

(a)         accurate colour rendering; and

(b)         no perceptible warm-up or restrike delay.

9.6.1.3C An IWDI installed before 1 July 2011 must be illuminated:

(a)         in accordance with paragraphs 9.6.1.3A and 9.6.1.3B; or

(b)         as follows:

(i)            four 200W 240V tungsten filament general purpose lamps in either vertical elliptical industry reflectors, or round deep bowl reflectors, between 1.8 m and 2.2 m above the mid-height of the sleeve mounting, and between 1.7 m and 1.9 m radial distance from the axis of rotation of the wind sleeve; or

(ii)          eight 120W 240V PAR 38 flood lamps in reflectorless fittings, between 1.8 m and 2.2 m above the mid-height of the wind sleeve mounting, and between 1.7 m and 1.9 m radial distance from the axis of the rotation of the wind sleeve; or

(iii)        some other method of floodlighting which:

(A)                      produces lighting equivalent to that provided under sub subparagraph 9.6.1.3C (b) (i) or (ii); and

(B)                      has accurate colour rendering; and

(C)                      has no perceptible warm-up or restrike delay.

9.6.1.4              The floodlighting is to be aimed and shielded to ensure that it causes neither glare nor distraction to pilots.

9.6.1.5              If only one wind direction indicator is lit at an aerodrome and there are two or more lit runways, control of the lighting of the wind direction indicator is to be incorporated in the runway lighting control for each runway, so that energising any runway lighting system will automatically energise the lighting of the wind direction indicator.

9.6.1.6              Where more than one wind direction indicator can be lit, control of the lighting of each wind direction indicator is to be incorporated in the runway lighting control for the operationally related runway.

9.6.1.7              If the electricity supply to a wind direction indicator is provided from a runway lighting circuit for which intensity control is provided, a uniform intensity is required for the wind direction indicator irrespective of the intensity setting of the runway lighting.

9.6.1.8              Where a PAL is installed the wind direction indicator lighting is to be programmed in such a way that 10 minutes before the end of the aerodrome lighting ‘ON’ period, the lights of the wind direction indicator will commence to flash, at approximately 50 cycles per minute, and continue to flash until either:

(a)         the PAL system switches off, and all aerodrome lighting, including the wind direction indicators, is extinguished; or

(b)         the PAL system has been reset for another ‘ON’ period.

9.6.1.9              If the PAL system is reset for another ‘ON’ period, the lights of the wind direction indicator are to return to steady lighting.

Section 9.7:   Approach Lighting Systems

9.7.1                   Simple Approach Lighting System

9.7.1.1              A simple approach lighting system is a lighting system intended for a non-instrument or a non-precision approach runway. Standards for this system are not included in this Chapter as there is no operational credit for such systems.

9.7.2                   Precision Approach Category I Lighting System

9.7.2.1              A precision approach Category I lighting system must be provided to serve a precision approach runway Category I, as far as physically practicable.

Location

9.7.2.2              A precision approach Category I lighting system must consist of a row of lights on the extended centreline of the runway extending, wherever possible, over a distance of 900 m from the runway threshold, with a row of lights forming a crossbar 30 m in length at a distance of 300 m from the runway threshold.

9.7.2.3              The lights forming the crossbar must be:

(a)         as nearly as practicable in a horizontal straight line at right angles to, and bisected by, the line of the centreline lights; and

(b)         spaced so as to produce a linear effect, except that gaps may be left on each side of the centreline provided:

(i)            the spacing of gaps is kept to a minimum to meet local requirements; and

(ii)          no gap exceeds 6 m.

9.7.2.4              The lights forming the centreline must be placed at longitudinal intervals of 30 m with the innermost light located 30 m from the threshold.

9.7.2.5              The lighting system must lie as nearly as practicable in the horizontal plane passing through the threshold, and be such that:

(a)         no object, other than an ILS azimuth antenna, protrudes through the plane of the approach lights within a distance of 60 m from the centreline of the system; and

(b)         no light, other than a light located within the central part of a crossbar or a centreline barrette (not their extremities), is screened from an approaching aircraft.

Antenna protrusions

9.7.2.6              An ILS azimuth antenna protruding through the plane of the lights must be treated as an obstacle and marked and lighted accordingly.

Characteristics

9.7.2.7              The centreline and crossbar lights of a precision approach Category I lighting system must:

(a)         be fixed lights showing variable white; and

(b)         for each centreline light position — consist of:

(i)            1 light source in the innermost 300 m of the centreline, 2 light sources in the central 300 m of the centreline and 3 light sources in the outer 300 m of the centreline, to provide distance information; or

(ii)          a barrette.

9.7.2.8              A barrette must be:

(a)         at least 4 m in length; and

(b)         if composed of lights approximating to point sources — composed of such lights uniformly spaced at intervals of not more than 1.5 m.

9.7.2.9              If the centreline consists of barrettes in accordance with sub-subparagraph 9.7.2.7 (b) (ii), each barrette that is at least 300 m from the threshold must be supplemented by a capacitor discharge light which must:

(a)         be flashed twice a second in sequence, beginning with the outermost light and progressing toward the threshold to the innermost light of the system; and

(b)         be of such electrical circuit design that it can be operated independently of the other lights of the approach lighting system.

9.7.2.10         If the centreline consists of lights as described in sub-subparagraph 9.7.2.7 (b) (i):

(a)         crossbars of lights (additional to the crossbar of lights at 300 m from the threshold) must be provided at 150 m, 450 m, 600 m and 750 m from the threshold; and

(b)         the lights forming each crossbar must be:

(i)            as nearly as practicable in a horizontal straight line at right angles to, and bisected by, the line of the centreline lights; and

(ii)          spaced so as to produce a linear effect, except that gaps may be left on each side of the centreline provided:

(A)        the number of gaps is kept to a minimum to meet local requirements; and

(B)        no gap exceeds 6 m.

9.7.2.11         Where the additional crossbars described in 9.7.2.10 are incorporated in the system, the outer ends of the crossbars must lie on two straight lines that converge to meet the runway centreline 300 m from threshold.

9.7.2.12         Figure 9.7-1 below illustrates both kinds of precision approach Category I lighting configurations mentioned in this section.

9.7.2.13         The lights must be in accordance with the specifications of Section 9.8, Figure 9.8-1.

Figure 9.7-1: Precision approach Category I lighting systems

9.7.3                   Precision Approach Categories II and III Lighting System

9.7.3.1              A precision approach Category II and Category III lighting system must be provided to serve a precision approach runway Category II or III.

Location

9.7.3.2              The approach lighting system must consist of a row of lights on the extended centreline of the runway, extending, wherever possible, over a distance of 900 m from the runway threshold, with:

(a)         2 side rows of lights, extending 270 m from the threshold; and

(b)         2 crossbars, 1 at 150 m and 1 at 300 m from the threshold, as shown in Figure 9.7.2.

9.7.3.3              The centreline lights must be at longitudinal intervals of 30 m, with the innermost lights located 30 m from the threshold.

9.7.3.4              The side row lights must be placed:

(a)         on each side of the centreline; and

(b)         at a longitudinal spacing equal to that of the centreline lights; and

(c)          with the first light located 30 m from the threshold; and

(d)         so that the lateral spacing (or gauge) between the innermost lights of the side rows is not less than 18 m nor more than 22.5 m, but in any event equal to that of the touchdown zone lights.

9.7.3.5              The crossbar provided at 150 m from the threshold must fill in the gaps between the centreline and side row lights.

9.7.3.6              The crossbar provided at 300 m from the threshold must extend on both sides of the centreline lights to a distance of 15 m from the centreline.

9.7.3.7              If the centreline beyond a distance of 300 m from the threshold consists of lights as described in subparagraph 9.7.3.12 (b), additional crossbars of lights must be provided at 450 m, 600 m and 750 m from the threshold.

9.7.3.8              Where the additional crossbars described in 9.7.3.7 are incorporated in the system, the outer ends of these crossbars must lie on two straight lines that converge to meet the runway centreline 300 m from the threshold.

9.7.3.9              The lighting system must lie as nearly as practicable in the horizontal plane passing through the threshold, and be such that:

(a)         no object, other than an ILS azimuth antenna, may protrude through the plane of the approach lights within a distance of 60 m from the centreline of the system; and

(b)         no light, other than a light located within the central part of a crossbar or a centreline barrette (not their extremities), may be screened from an approaching aircraft.

Antenna protrusions

9.7.3.10         An ILS azimuth antenna protruding through the plane of the lights must be treated as an obstacle and marked and lighted accordingly.

Characteristics

9.7.3.11         The centreline of a precision approach Categories II and III lighting system for the first 300 m from the threshold must consist of barrettes showing variable white, except that, where the threshold is displaced 300 m or more, the centreline may consist of single light sources showing variable white.

9.7.3.12         Beyond 300 m from the threshold, each centreline light position must consist of 1 of the following which all must show variable white:

(a)         1 barrette as used on the inner 300 m;

(b)         2 light sources in the central 300 m of the centreline, and 3 light sources in the outer 300 m of the centreline.

9.7.3.13         A barrette must be:

(a)         at least 4 m in length; and

(b)         if composed of lights approximating to point sources — composed of such lights uniformly spaced at intervals of not more than 1.5 m.

9.7.3.14         If the centreline beyond a distance of 300 m from the threshold consists of barrettes as described in subparagraph 9.7.3.12 (a), each barrette must be supplemented by a capacitor discharge light which must:

(a)         be flashed twice a second in sequence, beginning with the outermost light and progressing toward the threshold to the innermost light of the system; and

(b)         be of such electrical circuit design that it can be operated independently of the other lights of the approach lighting system.

9.7.3.15         Each side row of lights must consist of a barrette:

(a)         whose lights show red; and

(b)         whose length and light spacing must be equal to the length and light spacing of the barrettes in the touchdown zone.

9.7.3.16         The lights forming the crossbars must be:

(a)         fixed lights showing variable white; and

(b)         uniformly spaced at intervals of not more than 2.7 m.

9.7.3.17         The intensity of the red lights must be compatible with the intensity of the white lights.

9.7.3.18         The lights must be in accordance with the specifications of Section 9.8, Figure 9.8-1 and Figure 9.8-2.

.

Figure 9.7-2: Precision approach lighting system, Categories II and III

Section 9.8:   Isocandela Diagrams of Approach Lighting

9.8.1                   Collective Notes

9.8.1.1              Except for Paragraph 9.11.1.4, the collective notes for Section 9.11 apply to this Section.

9.8.1.2              Average intensity ratio. The ratio between the average intensity within the ellipse defining the main beam of a typical new light and the average intensity of the main beam of a new runway edge light is to be as follows:

(a)         Figure 9.8‑1 Approach centreline and crossbars ― 1.5 to 2.0 (white light)

(b)         Figure 9.8‑2 Approach side row ― 0.5 to 1.0 (red light)

Figure 9.8‑1: Isocandela diagram for approach centreline light and cross bars (white light)

Notes: 1. Curves calculated on formula

 2. Vertical setting angles of the lights must be such that the following vertical coverage of the main beam will be met:

Distance from threshold Vertical main beam coverage

Threshold to 315 m 0º – 11º

316 m to 475 m 0.5º – 11.5º

476 m to 640 m 1.5º – 12.5º

641 m and beyond 2.5º – 13.5º (as illustrated above)

 3. Lights in crossbars beyond 22.5 m from the centre line must be toed-in 2 degrees. All other lights must be aligned parallel to the centre line of the runway.

 4. See collective notes at Paragraph 9.8.1.

Figure 9.8‑2: Isocandela Diagram for approach side row light (red light)

Notes: 1. Curves calculated on formula

 2. Toe-in 2 degrees

 3. Vertical setting angles of the lights must be such that the following vertical coverage of the main beam will be met:

Distance from threshold Vertical main beam coverage

Threshold to 115 m 0.5º – 10.5º

116 m to 215 m 1.0º – 11º

216 m and beyond 1.5º – 11.5º (as illustrated above)

 4. See collective notes at Paragraph 9.8.1.

Section 9.9:   Visual Approach Slope Indicator Systems

9.9.1                   General

9.9.1.1              A visual approach slope indicator system shall be provided to serve the approach to a runway, whether or not the runway is served by electronic approach slope guidance, where one of the following applies:

(a)         The runway is regularly used by jet-propelled aeroplanes engaged in air transport operations.

(b)         CASA directs that visual approach slope guidance be provided, because it has determined that such a visual aid is required for the safe operation of aircraft.

9.9.1.2              In making a determination that visual approach slope guidance is required, CASA will take into account the following:

(a)         The runway is frequently used by other jet-propelled aeroplanes, or other aeroplanes with similar approach guidance requirements.

(b)         The pilot of any type of aeroplane may have difficulty in judging the approach due to:

(i)            inadequate visual guidance such as is experienced during an approach over water or featureless terrain by day or in the absence of sufficient extraneous lights in the approach area by night;

(ii)          misleading approach information such as that produced by deceptive surrounding terrain, runway slope, or unusual combinations of runway width, length and light spacing;

(iii)        a displaced threshold.

(c)          The presence of objects in the approach area may involve serious hazard if an aeroplane descends below the normal approach path, particularly if there are no non-visual or other visual aids to give warning of such objects.

(d)         Physical conditions at either end of the runway present a serious hazard in the event of an aeroplane undershooting or overrunning the runway.

(e)         Terrain or prevalent meteorological conditions are such that the aeroplane may be subjected to unusual turbulence during approach.

9.9.1.3              CASA may direct that a visual approach slope indicator system be provided for temporary use only, for example due to a temporary displaced threshold, or during works in progress.

9.9.1.4              The following visual approach slope indicator systems are approved for use in Australian civil aerodromes:

(a)         T-VASIS;

(b)         AT-VASIS;

(c)          Double-sided PAPI; and

(d)         PAPI.

9.9.1.5              The standard installations must be:

(a)         At international aerodromes, T-VASIS, or double-sided PAPI.  Where this is impracticable, an AT-VASIS or PAPI is acceptable.

(b)         At aerodromes other than international aerodromes, AT-VASIS or PAPI, except where (c) below applies.

(c)          At aerodromes where CASA has determined that additional roll guidance is required, and/or high system integrity is necessary, T-VASIS or double-sided PAPI.

(d)         AT-VASIS and PAPI must be installed on the left side of the runway, unless this is impracticable.

9.9.1.6              Where a T-VASIS is to be replaced by a PAPI, a double-sided PAPI must be provided.

9.9.1.7              Where more than one visual approach slope indicator system is provided at an aerodrome, to avoid confusion, the same type of approach slope indicator system must be used at each end of a runway.  If there is more than one runway, the same type of approach slope indicator system must be used on all runways of similar reference code number.

9.9.1.8              Where a visual approach slope indicator system is provided for temporary use only, in accordance with 9.9.1.3, then 9.9.1.7 need not apply.

9.9.1.9              The choice of T-VASIS or PAPI is a matter between the aerodrome operator and airline operators using the runway.  For capital city runways used by a range of medium and large jet aeroplanes, T-VASIS would be a better visual aid.

9.9.2                   Obstacle Assessment Surface

9.9.2.1              An obstacle assessment surface (OAS) must be surveyed and assessed for obstacles for each end of the runway where a T-VASIS, AT-VASIS, double‑sided PAPI or PAPI is to be provided. Standards of OAS are as follows and an OAS is illustrated below:

(a)         Baseline: Width 150 m, coincident with the existing baseline for the approach surface;

(b)         Slope: 1.9º;

(c)          Splay: 7.5º outwards, commencing from the ends of the baseline;

(d)         Length: 9 km from the baseline.

Figure 9.9‑1: Illustration of an Obstacle Assessment Surface for 3° approach slope

9.9.2.2              The aerodrome operator must check any penetration by, or proximity to, objects such as radio masts, buildings etc. and terrain, of the Obstacle Assessment Surface as specified in Paragraph 9.9.2.1. Where one or more obstacles are found, or where high ground lies close to the approach path, the relevant CASA Office must be requested to conduct an aeronautical study to determine whether the obstacle(s) or terrain could adversely affect the safety of aircraft operations.

9.9.2.3              Where practicable, objects above the assessment surface must be removed, except where CASA determines that the object would not adversely affect the safety of operations.

9.9.2.4              If the study determines that safety could be adversely affected, and it is not practicable to remove the object, then one or more of the following measures should be undertaken:

(a)         suitably raise the approach slope of the system – to a maximum of 3.3° where the runway is used by jet propelled aeroplanes, or 4° for other aeroplanes: the OAS slope can then be raised by the same amount, e.g. for a 3.3° slope the OAS can become 2.2° instead of 1.9°;

(b)         reduce the azimuth spread so that the obstacle is outside the confines of the beam;

(c)          displace the axis of the system and its associated OAS by up to 5°;

(d)         suitably displace the threshold; and

(e)         if (d) is impracticable, suitably displace the system upwind of the threshold to provide an increase in threshold crossing height equal to the height of the obstacle penetration.

9.9.3                   T-VASIS and AT-VASIS

9.9.3.1              A T-Visual Approach Slope Indicator System (T-VASIS) is a set of lights so arranged that the pattern seen by the pilot varies according to his position (up or down, left or right) relative to the desired approach path. Where installed in the runway strip, it provides the pilot with visual cues about his or her actual descent path relative to the desired descent path.

Figure 9.9‑2: T-VASIS Layout

9.9.3.2              A T-VASIS must consist of twenty light units symmetrically disposed about the runway centreline in the form of two wing bars of four light units each, with bisecting longitudinal lines of six lights, and laid out as shown in Figure 9.9‑2.

9.9.3.3              An AT-VASIS must consist of ten light units arranged on one side of the runway in the form of a single wing bar of four light units with a bisecting longitudinal line of six lights.

9.9.3.4              The light units must be constructed and arranged in such a manner that the pilot of an aeroplane during an approach will:

(a)         When above the correct approach slope, see an inverted white ‘T’ pattern comprising the white wing bar(s) lights, and one, two or three white ‘fly-down’ lights, the more fly-down lights being visible, the higher the pilot is above the correct approach slope.

(b)         When on the correct approach slope, see a line of white wing bar(s) lights.

(c)          When below the correct approach slope, see a white ‘T’ pattern comprising the white wing bar(s) lights and one, two or three white ‘fly-up’ lights, the more fly-up lights being visible the lower the pilot is below the correct approach slope; and when well below the correct approach slope, see a red ‘T’ pattern with the wing bar(s) and the three fly-up lights showing red.

9.9.3.5              Siting a T-VASIS or AT-VASIS.  The siting of a T-VASIS or AT-VASIS must be such that:

(a)         The light units must be located as shown in Figure 9.9‑2, subject to the tolerances given in Table 9.9‑1.

(b)         The light units forming the wing bars, or the light units forming a fly-down or a fly-up matched pair, must be mounted so as to appear to the pilot of an approaching aeroplane to be substantially in a horizontal line.  The light units must be mounted as low as possible and must be frangible.

9.9.3.6              Characteristics of the T-VASIS light units.  The characteristics of the T-VASIS light units must be such that:

(a)         The system must be suitable for both day and night operations.

(b)         A suitable intensity control must be provided to allow adjustments to meet the prevailing conditions and to avoid dazzling the pilot during approach and landing.

(c)          The light distribution of the beam of each light unit must be of fan shape showing over a wide arc in azimuth in the approach direction.  The wing bar light units shall produce a beam of white light from 1° 54’ vertical angle up to 6° vertical angle and a beam of red light from 0° to 1° 54’ vertical angle.  The fly-down light units must produce a beam of white light extending from an elevation of 6° down to approximately the approach slope, where it must have a sharp cut-off.  The fly-up light units must produce a beam of white light from approximately the approach slope down to 1° 54’ vertical angle and a beam of red light below 1° 54’ vertical angle.  The angle of the top of the red beam in the wing bar units and fly-up units may be increased to provide obstacle clearance.

(d)         The colour transition from white to red must be so as to appear to an observer at a distance of not less than 300 m, to occur over a vertical angle of not more than 15’.  Immediately below this transition sector the intensity of the completely red beam must not be less than 15% of the intensity of the completely white beam immediately above the transition sector.

(e)         The beam of light produced by the light units must show through an angle of at least 1° 30’ above and below the approach slope both by day and by night and in azimuth through not less than 10° by day and not less than 15° by night.  The effective visual range of the light units in clear weather must be at least 7.4 km over the above angles.

(f)            The light units must be so designed that deposits of condensation, dirt, etc. on optically transmitting or reflecting surfaces must interfere to the least possible extent with the light signals and must in no way affect the elevation of the beams or the contrast between the red and white signals.  The construction of the light units must be such as to minimise the probability of the slots being wholly or partially blocked by snow or ice where these conditions are likely to be encountered.

9.9.3.7              Approach slope and elevation settings of light beams.  The approach slope and elevation settings of light beams must be such that:

(a)         An approach slope that is operationally satisfactory is to be selected for each runway. The standard approach slope is 3º (1:19 nominal), and with an eye height over threshold of 15 m.

(b)         When the runway on which a T-VASIS is provided is equipped with an ILS, the siting and elevation of the light units must be such that the T-VASIS approach slope is compatible with the ILS glide path. A T-VASIS eye-height over the threshold 1 m higher than the ILS glide path has been found to satisfy most aeroplanes.

(c)          The light beams from the corresponding light units on opposite sides of the runway must have the same recognition angle.  The fly-up and fly-down light units of the ‘T’ must appear with uniform steps as the approach slope changes.

(d)         The elevation of the beams of the wing bar light units on both sides of the runway must be the same.  The elevation of the top of the beam of the fly-up light unit nearest to each wing bar, and the bottom of the beam of the fly-down light unit nearest to each wing bar, must be equal and must correspond to the approach slope.  The cut-off angle of the top of the beams of successive fly-up units shall decrease by 5’(±½’) of arc in angle of elevation at each successive unit away from the wing bar.  The cut-in angle of the bottom of the beam of the fly-down light units must increase by 7’(±½’) of arc at each successive unit away from the wing bar.

(e)         The elevation setting of the top of the red light beams of the wing bar and fly-up light units must be such that, during an approach, the pilot of an aeroplane, to whom the wing bar and three fly-up units are visible, would clear all objects in the approach area by a safe margin, if any such light did not appear red.

9.9.3.8              Clearance from movement areas.  Light unit must not be sited closer than 15 m from the edge of the runway. Light units should be sited at least 15 m from the edge of a taxiway but should circumstances require units to be closer than this distance the particular case should be referred to CASA.

9.9.3.9              System dimensions.  Tabulated below are system dimensions, with allowable tolerances.  These values apply to design, installation and subsequent maintenance:

Table 9.9‑1

9.9.3.10         The aerodrome operator must ensure that the immediate surround of each unit is kept free of grass. Tall grass immediately in front of the light unit could provide conflicting light signals. Grass growing near to the box on any side could result in the fine settings being disturbed during power mowing operations.

9.9.3.11         Current settings.  The following information is provided for guidance only of aerodrome operators.  For existing installations, the recommended lamp current, the approximate series current and approximate light intensities are shown in Table 9.9‑2 and Table 9.9‑3.

Table 9.9‑2: Using 021027.8 (V1/418) Day Lamps and 020946-1 (V1/312) Night Lamps

Table 9.9‑3: Using 020975.2 (V1/353) Day Lamps (with 074315.4 (Y9/1846) transformer) and 020946-1 (V1/312) Night Lamps

9.9.4                   Precision Approach Path Indicator (PAPI) system

9.9.4.1              The PAPI system must consist of a row, also termed ‘wing bar’, of 4 equally spaced sharp transition multi-lamp (or paired single lamp) units. The system must be located on the left side of the runway, as viewed by an aircraft approaching to land, unless it is impracticable to do so.

9.9.4.2              The PAPI system must be sited and adjusted so that a pilot making an approach will:

(a)         when on or close to the approach slope, see the two units nearest the runway as red and the two units farthest from the runway as white;

(b)         when above the approach slope, see the one unit nearest the runway as red and the three units farthest from the runway as white; and when further above the approach slope, see all the units as white;

(c)          when below the approach slope, see the three units nearest the runway as red and the unit farthest from the runway as white; and when further below the approach slope, see all the units as red.

9.9.4.3              Where it is impracticable to install the PAPI on the left side of the runway, and it has been installed on the right, the usual order of the light units must be reversed, so that the on-slope indication is still given by the two units nearest the runway showing red.

9.9.4.4              A double-sided PAPI system must consist of eight light units symmetrically disposed about the runway centre line in the form of two wing bars of four light units each.  The indications seen by the pilot must be symmetrical, so that when on or close to the approach slope, the two light units nearest the runway, in both wing bars, show red.

9.9.4.5              Siting a PAPI or a Double-sided PAPI.  The following requirements are applicable to the siting of a PAPI or a Double-sided PAPI:

(a)         The light units must be located as in the basic configuration illustrated in Figure 9.9‑3, subject to the installation tolerances given therein.

(b)         The light units forming a wing bar must be mounted so as to appear to a pilot of an approaching aeroplane to be substantially in a horizontal line.  The light units must be mounted as low as possible and must be frangible.

Figure 9.9‑3: Siting of PAPI Light Units

9.9.4.6              Characteristics of the PAPI light units.  The characteristics of the PAPI light units must be such that:

(a)         The system must be suitable for both day and night operations.

(b)         The colour transition from red to white in the vertical plane must be such that as to appear to an observer, at a distance of not less than 300 m, to occur within a vertical angle of not more than 3'.

(c)          At full intensity the red light must have a Y co-ordinate not exceeding 0.320.

(d)         The light intensity distribution of the light units must be as shown in Figure 9.9‑4.

(e)         Suitable intensity control must be provided to allow adjustment to meet the prevailing conditions and to avoid dazzling the pilot during approach and landing.

(f)            Each light unit must be capable of adjustment in elevation so that the lower limit of the white part of the beam may be fixed at any desired angle of elevation between 1°30' and at least 4°30' above the horizontal.

(g)         The light units must be so designed that deposits of condensation, snow, ice, dirt, etc., on optical transmitting or reflecting surfaces must interfere to the least possible extent with the light signals and must not affect the contrast between the red and white signals and the elevation of the transition sector.

Figure 9.9‑4: Light intensity distribution of PAPI

9.9.4.7              Approach slope and elevation setting of light units.  The requirements for the approach slope and elevation setting of light units are:

(a)         The approach slope, as defined in Figure 9.9‑5, must be appropriate for use by the aeroplanes using the approach.  The standard approach slope is 3°.

(b)         When the runway on which a PAPI is provided is equipped with an ILS, the siting and elevation of the light units must be such that the PAPI approach slope conforms as closely as possible with the ILS glide path.

(c)          The angle of elevation settings of the light units in a PAPI wing bar must be such that, during an approach, the pilot of an aeroplane observing a signal of one white and three reds will clear all objects in the approach area by a safe margin.  See 9.9.2.4(a) concerning the raising of the approach slope.

(d)         The azimuth spread of the light beam must be suitably restricted where an object located outside the obstacle assessment surface of the PAPI system, but within the lateral limits of its light beam, is found to extend above the plane of the obstacle assessment surface and an aeronautical study indicates that the object could adversely affect the safety of operations.  The extent of the restriction must be such that the object remains outside the confines of the light beam.

(e)         Where a double-sided PAPI is provided, corresponding units must be seen at the same angle so that the signals of each wing bar change symmetrically at the same time.

Figure 9.9‑5: Light beams and angle of elevation setting for PAPI 3° approach slope

9.9.4.8              Determining PAPI wing bar distance from threshold

(a)         The optimum distance of PAPI wing bar from the runway threshold is determined by:

(i)            the requirement to provide adequate wheel clearance over the threshold for all types of aircraft landing on the runway;

(ii)          the operational desirability that PAPI is compatible with any non-visual glide path down to the minimum possible range and height; and

(iii)        any difference in elevation between the PAPI units and the runway threshold.

(b)         The distance of the PAPI units from the threshold may have to be modified from the optimum after consideration of:

(i)            the remaining length of runway available for stopping the aircraft; and

(ii)          obstacle clearance.

(c)          Table 9.9‑4 specifies the standard wheel clearance over the threshold for the most demanding amongst the aircraft regularly using the runway, for four aircraft eye-to-wheel height groups.  Where practicable, the standard wheel clearance shown in column (2) must be provided.

(d)         Where the landing run may be limited, especially at smaller aerodromes, a reduction in wheel clearance over the threshold may be more acceptable than a loss of landing distance.  The special minimum wheel clearance shown in column (3) may be used in such a situation, if an aeronautical study indicates such reduced clearances to be acceptable.  As guidance, these wheel clearances are unlikely to be acceptable where there are objects under the approach near the threshold, such as approach light supporting structures, boundary fences, roads, etc.

(e)         The final location of the units is determined by the relationship between the approach angle, the difference in levels between threshold and the units, and the minimum eye height over the threshold (MEHT).  The angle M used to establish the MEHT is 2’ of arc less than the setting angle of the unit which defines the lower boundary of the on-slope indication, i.e. unit B, the third unit from the runway.  See Figure 9.9‑6.

(f)            Where a PAPI is installed on a runway not equipped with an ILS, the distance D1 shall be calculated to ensure that the lowest height at which a pilot will see a correct approach path indication provides the wheel clearance over the threshold specified in Table 9.9‑4 for the most demanding amongst aeroplanes regularly using the runway.

(g)         Where a PAPI is installed on a runway equipped with an ILS, the distance D1 shall be calculated to provide the optimum compatibility between the visual and non-visual aids for the range of eye-to-antenna heights of the aeroplanes regularly using the runway.

(h)         If a wheel clearance greater than that that specified in 9.9.4.8(f) is required for specific aircraft, this can be achieved by increasing D1.

(i)            Distance D1 shall be adjusted to compensate for differences in elevation between the lens centres of the light units and the threshold.

(j)            PAPI units must be the minimum practicable height above ground, and not normally more than 0.9 m.  All units of a wing bar should ideally lie in the same horizontal plane; however, to allow for any transverse slope, small height differences of no more than 50 mm between light units are acceptable.  A lateral gradient not greater than 1.25% can be accepted provided it is uniformly applied across the units.

Table 9.9‑4: Wheel clearance over threshold for PAPI

Figure 9.9‑6: The arrangement of a PAPI system and the resulting display

9.9.4.9              Procedure for Establishing the Distance of the PAPI Wing Bar from the Runway Threshold

(a)         Decide on the required approach slope.  The standard approach slope is 3°.

(b)         On runways where no ILS is installed, refer to Table 9.9‑4 to determine the aeroplane eye-to-wheel group and the wheel clearance to be provided at the threshold.  The MEHT, which provides the appropriate wheel clearance over the threshold, is established by adding the approach configuration eye-to-wheel height of the most demanding amongst the aircraft regularly using the runway to the required threshold wheel clearance.

(c)          The calculation of the nominal position of the PAPI is made on the assumption that the PAPI units are at the same level as the runway centreline adjacent to them, and this level, in turn, is the same as that of the runway threshold.  The nominal distance of the PAPI is derived by multiplying the required MEHT by the cotangent of the angle M in Figure 9.9‑6.

(d)         Where there is a difference in excess of 0.3 m between the elevation of the runway threshold and the elevation of unit B at the nominal distance from the threshold, it will be necessary to displace the PAPI from its nominal position.  The distance will be increased if the proposed site is lower than the threshold and will be decreased if it is higher.  The required displacement is determined by multiplying the difference in level by the cotangent of the angle M.

(e)         Where a PAPI is installed on a runway equipped with an ILS, the distance D1 must be equal to that between the threshold and the effective origin of the ILS glide path, plus a correction factor for the variation of eye-to-antenna heights of the aeroplanes concerned.  The correction factor is obtained by multiplying the average eye-to-antenna height of those aeroplanes by the cotangent of the approach angle.  The PAPI is then aimed at the same angle as the ILS glide slope.  Harmonization of the PAPI signal and the ILS glide path to a point closer to the threshold may be achieved by increasing the width of the PAPI on-course sector from 20' to 30'.  However, the distance D1 must be such that in no case will the wheel clearance over the threshold be lower than specified in column (3) of Table 9.9‑4.

Section 9.10:   Runway Lighting

9.10.1              Types of Runway Edge Lighting Systems

9.10.1.1         A runway edge lighting system may be of the following type:

(a)         low intensity – a single intensity lighting system suitable for a non-instrument runway or a non-precision approach runway. This is provided at an aerodrome where there is no appropriate person, such as an air traffic controller, certified air/ground radio operator, or similar, to adjust the intensity settings of the lights;

(b)         medium intensity – a 3-stage intensity lighting system suitable for a non-instrument runway or a non-precision approach runway. This is provided to enhance the lighting system particularly in marginal weather conditions. This system cannot be used at an aerodrome that does not have air traffic services or similar personnel.

(c)          high intensity – a 5 or 6 stage intensity lighting system which is suitable for precision approach runways. This system cannot be used at an aerodrome that does not have air traffic services or similar personnel.

9.10.2              Runway Edge Lights

9.10.2.1         Runway edge lights must be provided for a runway intended for use at night or for a precision approach runway intended for use by day or night.

9.10.2.2         Runway edge lighting must meet the following operational requirements:

(a)         for every runway intended for use at night, omnidirectional lights meeting the characteristics requirements of 9.10.6 shall be provided to cater for both visual circling after an instrument approach to circling minima, and circuits in VMC;

(b)         for a precision approach runway, in addition to (a) above, unidirectional lights meeting the characteristics requirements of 9.10.7, and 9.10.8, if applicable, shall also be provided.

9.10.3              Location of Runway Edge Lights

9.10.3.1         Runway edge lights must be placed along both sides of the runway, in two parallel straight rows equidistant from the centreline of the runway, commencing one-light spacing from the threshold and continuing to one-light spacing from the runway end.

9.10.4              Longitudinal Spacing of Runway Edge Lights

9.10.4.1         The longitudinal spacing of runway edge lights must be uniform and be:

(a)         for an instrument runway, 60 m +0 / -5 m;

(b)         for a non-instrument runway, 90 m ± 10 m, or 60 m +0 / -5 m if there is an intention to upgrade the runway to an instrument runway at some time in the future.

(c)          for non-precision instrument runways intended to be used in visibility conditions of 1.5 km or greater, where existing edge lights are spaced at 90 m ±10 m, it is acceptable to retain this spacing until the next replacement or improvement of the edge lighting system.  (This situation typically arises from an existing non-instrument runway being upgraded to a non-precision instrument runway, but without re-installing the runway edge lights to the 60 m +0 / -5 m standard.)

9.10.4.2         Where the runway is a non-instrument or a non-precision instrument runway, and it is intersected by other runways or taxiways:

(a)         within 600 m of the threshold, lights may be spaced irregularly, but not omitted, and

(b)         more than 600 m from the threshold, lights may be spaced irregularly or omitted, but no two consecutive lights may be omitted;

provided that such irregular spacing or omission does not significantly alter the visual guidance available to a pilot using the runway.

9.10.4.3         Runway edge lights must not to be omitted on a precision approach runway.

9.10.4.4         Where a runway edge light cannot be omitted, inset runway edge lights must be provided in place of elevated lights.

9.10.4.5         Unless a light is omitted or displaced in accordance with Paragraph 9.10.4.2, a runway edge light must be aligned with a light on the opposite side of the runway.

9.10.5              Lateral Spacing of Runway Edge Lights

9.10.5.1         Subject to Paragraph 9.10.5.2, runway edge lights must be placed along the edges of the area declared for use as the runway or outside the edges of the area at a distance of not more than 3 m.

9.10.5.2         If the width of a runway is less than 30 m in width, the runway edge lights must be placed as if the runway is 30 m in width, and in accordance with Paragraph 9.10.5.1.

9.10.5.3         If a runway is provided with both low or medium intensity and high intensity runway light units, the row of high intensity light units shall be placed closer to the runway centreline. The two rows of light units are to be parallel, separated by a distance of at least 0.5 m.

9.10.6              Characteristics of Low and Medium Intensity Runway Edge Lights

9.10.6.1         Low intensity and medium intensity runway edge lights must be fixed omnidirectional lights that show variable white.  Elevated omnidirectional lights must have light distribution that is uniform for the full 360° horizontal coverage.  Where elevated lights are impracticable and inset lights are used, the photometric characteristics of the inset lights are to be as close as practicable to those of the elevated lights.

9.10.6.2         The minimum light intensity for low intensity runway edge lights is to be in accordance with Section 9.11, Figure 9.11‑1. The main beam, between 0º and 7º above the horizontal, is to have a minimum average intensity of not less than 100 cd, and a maximum average intensity of not more than 200 cd.

9.10.6.3         Low intensity runway edge lights are to have a single intensity for all lights in the same runway lighting system.

9.10.6.4         The minimum light intensity for medium intensity runway edge lights is to be in accordance with Section 9.11, Figure 9.11‑2. The main beam, between 0º and 7º above the horizontal, is to have a minimum average intensity of not less than 200 cd, and a maximum average intensity of not more than 600 cd.

9.10.7              Characteristics of High Intensity Runway Edge Lights

9.10.7.1         High intensity runway edge lights must be fixed unidirectional lights with the main beam directed towards the threshold.

9.10.7.2         High intensity runway edge light beam coverage shall be toed in towards the runway as follows:

(a)         3.5° in the case of a 30-45 m wide runway;

(b)         4.5° in the case of a 60 m wide runway.

9.10.7.3         High intensity runway edge lights must show variable white except for those located within 600 m from the runway end which must show yellow.

9.10.7.4         The minimum light intensity for high intensity runway edge lights that show variable white is to be in accordance with Section 9.11

(a)         Figure 9.11‑3 for 30 m to 45 m wide runways; and

(b)         Figure 9.11‑4 for 60 m wide runways.

9.10.7.5         The minimum light intensity for high intensity runway edge lights that show yellow is the standard set out in Figure 9.11‑3 or Figure 9.11‑4, whichever is applicable, multiplied by 0.4.

9.10.8              Use of Bidirectional or Back-to-back Light Fittings

9.10.8.1         On a runway where high intensity edge lights are intended to be used from either direction, separate high intensity runway edge light fittings may be provided back-to-back, or bidirectional light fittings with the correct toe-in angle built in, may be used.

9.10.9              Runway Threshold Lights

9.10.9.1         Runway threshold lights must be provided on a runway that is equipped with runway edge lights.

9.10.10         Location of Runway Threshold Lights

9.10.10.1     Runway threshold lights must be located in a straight line at right angles to the centreline of the runway and:

(a)         when the threshold is at the extremity of a runway – as near to the extremity as possible and not more than 3 m outside, or 1 m inside of the extremity; or

(b)         when the threshold is a displaced threshold – at the displaced threshold with a tolerance of ± 1 m.

9.10.11         Pattern of Low Intensity and Medium Intensity Runway Threshold Lights

9.10.11.1     Low and medium intensity runway threshold lights are to consist of:

(a)         2 omnidirectional lights, one at each end of the threshold and in line with the runway edge lights; and

(b)         6 unidirectional lights at equal intervals between the 2 omnidirectional lights.

9.10.11.2     The 6 unidirectional lights are to be inset lights if:

(a)         the threshold is a permanently displaced threshold; or

(b)         the threshold is also equipped with high intensity threshold lights; or

(c)          it is impractical for elevated lights to be installed.

9.10.11.3     Subject to paragraph 9.10.11.6, only an aerodrome used predominantly for training and general aviation may use the alternative pattern of low intensity or medium intensity runway threshold lights as described in paragraph 9.10.11.5.

9.10.11.4     The alternative pattern is not suitable for aerodromes used predominantly by aircraft having a take-off weight greater than 5,700 kg, nor is it suitable for aerodromes where commercial air transport jet propelled aeroplanes operate.

9.10.11.5     The alternative pattern consists of:

(a)         6 elevated lights arranged in 2 groups of 3 equally spaced lights, with the distance between the 2 groups equal to half the lateral distance between the 2 rows of runway edge lights; and.

(b)         The outer lights on either side shall be omnidirectional green lights, and the inner 4 lights shall be unidirectional green lights (or bidirectional green/red lights when the same light fittings are used for runway end lights).

9.10.11.6     On and after 1 June 2010, an aerodrome may use the alternative pattern of low intensity or medium intensity runway threshold lights in paragraph 9.10.11.5 only if:

(a)         the aerodrome was using, and was entitled to use, the alternative pattern immediately before 1 June 2010; and

(b)         the aerodrome operator continues to comply with the alternative pattern on and after that date.

9.10.12         Pattern of High Intensity Runway Threshold Lights

9.10.12.1     High intensity runway threshold lights must consist of:

(a)         2 unidirectional lights, one at each end of the threshold and in line with the row of runway edge lights; and

(b)         unidirectional lights uniformly spaced between the 2 outer lights, at intervals of not more than 3 m.  These lights must be inset lights.

9.10.13         Characteristics of Low Intensity and Medium Intensity Runway Threshold Lights

9.10.13.1     Low intensity and medium intensity runway threshold lights must have the following characteristics:

(a)         the outermost light on each side must be a fixed omnidirectional light showing green;

(b)         the inner lights must be fixed unidirectional lights showing green in the direction of approach over not less than 38° or more than 180° of azimuth;

(c)          the light distribution in the direction of approach must be as close as practicable to that of the runway edge lights;

(d)         the intensity of the green lights must be in the range of 1 to 1.5 times the intensity of the runway edge lights.

9.10.14         Characteristics of High Intensity Runway Threshold Lights

9.10.14.1     High intensity runway threshold lights must be fixed lights showing green in the direction of approach with a minimum light intensity in accordance with Section 9.11, Figure 9.11‑5.

9.10.15         Additional Lighting to Enhance Threshold Location

9.10.15.1     Threshold Wing Bars:

(a)         On a precision approach runway, if it is operationally required that an increase in the conspicuity of the threshold at night be provided, the threshold may be provided with threshold wing bars.

(b)         Where provided, threshold wing bars must be symmetrically disposed on either side of the threshold:

(i)            each wing bar is to consist of 5 lights at 2.5 m apart;

(ii)          at right angles to the runway centreline; and

(iii)        with the inner most light of each wing bar aligned with the row of runway edge lights on that side of the threshold.

9.10.15.2     Characteristics of Threshold Wing Bars:

(a)         Threshold wing bars must have the following characteristics:

(i)            be fixed unidirectional lights showing green in the direction of approach; and

(ii)          the minimum light intensity is to be in accordance with Section 9.11, Figure 9.11‑6.

(b)         If it is impracticable to use elevated lights, inset lights may be used, however, inset and elevated lights must not be used in the same threshold wing bar.

9.10.15.3     Runway Threshold Identification Lights:

(a)         At an aerodrome where it is difficult to locate a runway threshold from the air during the day such as in the case of a displaced threshold or an aerodrome with complex runway/taxiway layout in the vicinity of the threshold, runway threshold identification lights may be required.

(b)         Runway threshold identification lights must be provided, during the day, to mark a temporarily displaced threshold of a runway serving international jet propelled aeroplanes conducting air transport operations.

9.10.15.4     Location of runway threshold identification lights.  Because of their nature and use, runway threshold identification lights can have more flexibility in their installation location than other visual aids.  Advantage can be taken of this particularly when they are provided on temporary displaced thresholds, to site them clear of existing facilities, and works areas.

9.10.15.5     Where provided, one light unit shall be on each side of the runway, equidistant from the runway centreline, on a line perpendicular to the runway centreline.  The optimum location of the light units shall be 12 to 15 m outside each line of runway edge lights, and in line with the threshold.  The light units may be located laterally up to 20 m from the line of runway edge lights and longitudinally up to 12 m prior to the threshold.  Each light unit shall be a minimum of 12 m from the edge of taxiways and runways.  The elevation of both light units shall be within 1 m of a horizontal plane through the runway centreline, with the maximum height above ground not exceeding 1 m.

9.10.15.6     Characteristics of runway threshold identification lights. Runway threshold identification lights must have the following characteristics:

(a)         be flashing lights;

(b)         the light flashes are synchronised with a normal flash rate of 100-120 per minute;

(c)          the colour of the lights is white;

(d)         a minimum range in bright sunlight of approximately 7 km; and

(e)         the beam axis of each light unit shall be aimed 15° outward from a line parallel to the runway centreline and inclined at an angle of 10° above the horizontal.

9.10.15.7     Temporarily displaced threshold lights for use at night. Temporarily displaced threshold lights must be provided at night to identify the new threshold location when the threshold of a runway is temporarily displaced.

9.10.15.8     Location of temporarily displaced threshold lights. Temporarily displaced threshold lights must be provided on each side of the runway:

(a)         in line with the displaced threshold:

(b)         at right angles to the runway centreline; and

(c)          with the innermost light on each side aligned with the row of runway edge lights on that side of the threshold.

9.10.15.9     Characteristics of temporarily displaced threshold lights. Temporarily displaced threshold lights must have the following characteristics:

(a)         each side must consist of 5 lights except that 3 lights per side is sufficient if the runway width is 30 m or less;

(b)         the lights must be spaced at 2.5 m apart;

(c)          the innermost light of each side must be a fixed omnidirectional light showing green in all angles of azimuth;

(d)         the outer 4 or 2 lights, as appropriate, of each side must be fixed unidirectional lights showing green in the direction of approach, over not less than 38° or more than 180° of azimuth;

(e)         the light distribution in the direction of approach must be as close as practicable to that of the runway edge lights;

(f)            the light intensity must be as close as practicable to 1.5 times, and not less than, that of the runway edge lights.

9.10.15.10          Runway lighting before a displaced threshold

(a)         If the part of runway located before a displaced threshold is available for aircraft use, i.e. for take-offs, and landings from the opposite direction, runway edge lights in this part of runway must:

(i)            show red in the direction of approach to the displaced threshold; and

(ii)          show white in the opposite direction, or yellow as appropriate for a precision approach runway.

(b)         The intensity of the red runway edge lights required under Paragraph 9.10.15.10(a) must not be less than one-quarter, and not more than one-half, that of the white runway edge lights.

(c)          Runway edge lights may be bidirectional light fittings or separate light fittings installed back to back.

(d)         If the portion of runway before a displaced threshold is closed to aircraft operations, all the runway lights thereon must be extinguished.

9.10.16         Runway End Lights

9.10.16.1     Runway end lights must be provided on a runway equipped with runway edge lights.

9.10.17         Location of Runway End Lights

9.10.17.1     Runway end lights must be located in a straight line at right angles to the runway centreline, and:

(a)         when the runway end is at the extremity of the runway – as near to the extremity as possible and not more than 3 m outside, or 1 m inside the extremity;

(b)         when the runway end is not at the extremity of the runway – at the runway end, with a tolerance of ± 1 m.

(c)          for the following areas:

(i)            a taxiway for exiting a runway;

(ii)          a runway turning area;

(iii)        other similar areas;

the runway end lights must be located in such a way that an aircraft using the area will not be required to cross the row of red lights comprising the runway end lights.

9.10.18         Pattern of Runway End Lights

9.10.18.1     The pattern of runway end lights must consist of:

(a)         at least 6 lights spaced at equal intervals between the rows of runway edge lights; or

(b)         if the runway is provided with the alternative threshold light pattern, the threshold pattern.

9.10.18.2     For a precision approach runway Category III, the spacing between runway end lights must not exceed 6 m.

9.10.19         Characteristics of Low and Medium Intensity Runway End Lights

9.10.19.1     Low intensity and medium intensity runway end lights must have the following characteristics:

(a)         the lights must be fixed unidirectional showing red in the direction of the runway over not less than 38° or more than 180° of azimuth;

(b)         the intensity of the red light must not be less than one-quarter, and not more than one-half, that of the runway edge lights;

(c)          the light distribution in the direction of the runway must be as close as practicable to that of the runway edge lights.

9.10.19.2     Low intensity and medium intensity runway end lights must be inset lights if:

(a)         the runway is also equipped with high intensity runway end lights; or

(b)         it is impracticable for elevated lights to be installed.

9.10.19.3     If the runway end coincides with the runway threshold, bidirectional light fittings may be used or separate light fittings installed back to back.

9.10.20         Characteristics of High Intensity Runway End Lights

9.10.20.1     High intensity runway end lights must have the following characteristics:

(a)         the lights must be inset, fixed unidirectional showing red in the direction of the runway; and

(b)         the minimum light intensity must be in accordance with Section 9.11, Figure 9.11‑7.

9.10.21         Runway Turning Area Edge Lights

9.10.21.1     Where an aircraft turning area is provided on a runway, the edge of the turning area must be provided with blue edge lights if the runway is provided with edge lights.

9.10.21.2     Runway turning area edge lights must be located not less than 0.6 m, and not more than 1.8 m, outside the edge of the turning area.

9.10.21.3     If the beginning of the splay into a runway turning area is more than 10 m from the previous runway edge light, a blue edge light must be located where the turning area commences.

9.10.21.4     Turning area edge lights must be provided to mark any change of direction along the side of the turning area.

9.10.21.5     Where a side of the turning area is longer than 30 m, equally spaced blue edge lights must be provided along that side, with spacing not exceeding 30 m.

9.10.21.6     Runway turning area edge lights must have the same characteristics as taxiway edge lights, in accordance with Paragraph 9.13.15.

9.10.22         Stopway Lights

9.10.22.1     Stopway lights must be provided on a stopway which is longer than 180 m and is intended for night use.

9.10.22.2     Stopway lights must be located along both sides of the stopway in line with the runway edge lights and up to the stopway end.

9.10.22.3     The spacing of stopway lights must be uniform and not more than that of the runway edge lights, with the last pair of lights located at the stopway end.

9.10.22.4     The stopway end must be further indicated by at least 2 stopway lights at equal intervals across the stopway end between the last pair of stopway lights.

9.10.22.5     Stopway lights must have the following characteristics:

(a)         the lights must be fixed and unidirectional showing red in the direction of the runway, and not visible to a pilot approaching to land over the stopway;

(b)         the light distribution in the direction of the runway must be as close as possible to that of the runway edge lights; and

(c)          the intensity of the red light must not be less than one quarter, and not more than one half, that of the white runway edge lights.

9.10.23         Hold Short Lights

9.10.23.1     Hold short lights must be provided on a runway which is intended to accommodate land and hold short operations (LAHSO).

9.10.23.2     Hold short lights must be at least 6 inset lights located across the runway as near to the hold short line as possible, and in any case not beyond, and not more than 3 m before the hold short line, which is at least 75 m from the centreline of the intersecting runway.

9.10.23.3     The hold short lights must be at right angles to the runway, and located symmetrically about the runway centreline, with the closest lights at 1.5 m from the centreline, and subsequent lights 3 m apart.

9.10.23.4     The hold short lights must be unidirectional, showing white in the direction of approach to the hold short position, and have photometric characteristics in accordance with Section 9.11, Figure 9.11‑8.

9.10.23.5     The lights must occult, in unison, at between 25 and 35 cycles per minute. The illumination period shall be approximately 2/3, and the light suppression period shall be approximately 1/3, of the total period of each cycle.

9.10.23.6     Each bar of hold short lights must be individually controlled, provided with variable intensity setting, and technically monitored for serviceability, at the operator position of the ATC operator controlling the LAHSO operation.

9.10.23.7     Where secondary power is available, hold short lights must be connected to that power system, with changeover times not greater than for the runway lighting on the same runway.

9.10.24         Runway Centreline Lights

9.10.24.1     Runway centreline lights must be provided on the following:

(a)         a Cat II or III precision approach runway;

(b)         a runway intended for take-offs with an operating minimum below an RVR of 350 m.

9.10.24.2     Runway centreline lights must be located from the threshold to the end at longitudinal spacing of approximately:

(a)         15 m on a runway intended for use in runway visual range conditions less than a value of 350 m; and

(b)         30 m on a runway intended for use in runway visual range conditions of 350 m or greater.

9.10.24.3     The runway centreline lights may be offset by not more than 0.6 m from the true runway centreline, for maintenance of runway marking purposes.

9.10.24.4     The offset shall be on the left hand side of the landing aircraft, where practicable. Where the runway is used in both directions, the direction from which the majority of landings will take place shall prevail.

9.10.24.5     Runway centreline lights must be inset, fixed lights showing white from the threshold to a point 900 m from the runway end. From 900 m to 300 m from the runway end, the light pattern is to be two red lights followed by two white lights. For the last 300 m before the runway end, the lights must show red.

9.10.24.6     The light intensity and distribution of runway centreline lights must be in accordance with:

(a)         Section 9.11, Figure 9.11‑8 — for 30 m spacing;

(b)         Section 9.11, Figure 9.11‑9 — for 15 m spacing.

9.10.25         Runway Touchdown Zone Lights

9.10.25.1     Runway touchdown zone lights must be provided for a runway intended for precision approach Category II or III operations.

9.10.25.3 Runway touchdown zone lights must extend from the threshold for a distance of 900 m. The lighting is to consist of a series of transverse rows of lights, or barrettes, symmetrically located on each side of the runway centreline.

9.10.25.4 Each barrette must consist of three light units at 1.5 m apart. The innermost light of each barrette must be at 9 m from the true runway centreline.

9.10.25.5 The first pair of barrettes must be located at 60 m from the threshold. Subsequent barrettes must be spaced longitudinally at 60 m apart.

9.10.25.6 Runway touchdown zone lights must be inset, fixed unidirectional lights showing variable white.

9.10.25.7 Runway touchdown zone lights must be in accordance with Section 9.11, Figure 9.11‑10.

9.10.26         Photometric Characteristics of Runway Lights

9.10.26.1     Section 9.11, Figure 9.11‑11 shows the method of establishing the grid points for calculating the average intensity of low and medium intensity runway lights for non-instrument and instrument non-precision approach runways.

9.10.26.2     Section 9.11, Figure 9.11‑12 shows the method of establishing grid points for calculating the average intensity of high intensity approach and runway lights for precision approach runways.

9.10.26.3     The average light intensity of the main beam of a light is calculated by:

(a)         establishing grid points in accordance with the method shown in Section 9.11, Figure 9.11‑11 or Figure 9.11‑12, whichever is applicable.

(b)         measuring the light intensity values at all grid points within and on the perimeter of the rectangle or ellipse representing the main beam;

(c)          calculating the arithmetic average of the light intensity values as measured at those grid points.

9.10.26.4     The maximum light intensity value measured on or within the perimeter of the main beam must not to be more than three times the minimum light intensity value so measured.

9.10.27         Installation and Aiming of Light Fittings

9.10.27.1     The following points must be followed in the installation and aiming of light fittings:

(a)         the lights are aimed so that there are no deviations in the main beam pattern, to within 1/2° from the applicable standard specified in this Chapter;

(b)         horizontal angles are measured with respect to the vertical plane through the runway centreline;

(c)          when measuring horizontal angles for lights other than runway centreline lights, the direction towards the runway centreline is to be taken to be positive;

(d)         vertical angles specified are to be measured with respect to the horizontal plane.

9.10.28         Illustrations of Runway Lighting

9.10.28.1     Section 9.12 contains illustrations of runway lighting.

Section 9.11:   Isocandela Diagrams of Runway Lighting

9.11.1              Collective Notes

9.11.1.1         The ellipses in each figure are symmetrical about the common vertical and horizontal axes.

9.11.1.2         Figure 9.11‑1 to Figure 9.11‑10 show the minimum allowable light intensities. The average intensity of the main beam is calculated by establishing the grid points as shown in Figure 9.11‑11 or Figure 9.11‑12, as appropriate, and using the intensity values measured at all grid points located within and on the perimeter of the ellipse representing the main beam. The average value is the arithmetic average of light intensities measured at all considered grid points.

9.11.1.3         No deviations are acceptable in the main beam pattern when the lighting fixture is properly aimed.

9.11.1.4         Average intensity ratio. The ratio between the average intensity within the ellipse defining the main beam of a typical new light and average light intensity of the main beam of a new runway edge light is to be as follows:

9.11.1.5         The beam coverages in the figures provide the necessary guidance for approaches down to an RVR of the order of 150 m and take-off to an RVR of the order of 100 m.

9.11.1.6         Horizontal angles are measured with respect to the vertical plane through the runway centreline. For lights other than centreline lights, the direction towards the runway centreline is considered positive. Vertical angles are measured with respect to the horizontal plane.

9.11.1.7         The light units are to be installed so that the main beam is aligned within one-half degree of the specified requirement.

9.11.1.8         On the perimeter of and within the ellipse defining the main beam, the maximum light intensity is not to be greater than three times the minimum light intensity value measured.

Figure 9.11‑1: Isocandela Diagram for Omnidirectional Runway Edge Light - Low Intensity Runway Lighting System

Figure 9.11‑2: Isocandela Diagram for Omnidirectional Runway Edge Light - Medium Intensity Runway Lighting System

Figure 9.11‑3: Isocandela Diagram for High Intensity Runway Edge Lights where the Width of the Runway is 30 to 45 metres (White Light)

Notes: 1. Curves calculated on formula

 2. Toe-in 3.5º

 3. For yellow light multiply values by 0.4

 4. See collective notes at Paragraph 9.11.1 for Figure 9.11‑1 to Figure 9.11‑10.

Figure 9.11‑4: Isocandela Diagram for High Intensity Runway Edge Lights where the Width of the Runway is 60 m (White Light)

Notes: 1. Curves calculated on formula

 2. Toe-in 4.5º

 3. For yellow light multiply values by 0.4

 4. See collective notes at Paragraph 9.11.1 for Figure 9.11‑1 to Figure 9.11‑10.

Figure 9.11‑5: Isocandela Diagram for High Intensity Threshold Lights (Green Light)

Notes: 1. Curves calculated on formula

 2. Toe-in 3.5º

 3. See collective notes at Paragraph 9.11.1 for Figure 9.11‑1 to Figure 9.11‑10.

Figure 9.11‑6: Isocandela Diagram for High Intensity Threshold Wing Bar Lights (Green Light)

Notes: 1. Curves calculated on formula

 2. Toe-in 2º

 3. See collective notes at Paragraph 9.11.1 for Figure 9.11‑1 to Figure 9.11‑10.

Figure 9.11‑7: Isocandela Diagram for High Intensity Runway End Lights (Red Light)

Notes: 1. Curves calculated on formula

 2. See collective notes at Paragraph 9.11.1 for Figure 9.11‑1 to Figure 9.11‑10.

Figure 9.11‑8: Isocandela Diagram for High Intensity Runway Centreline Lights with 30 m Longitudinal Spacing (White Light)

Notes: 1. Curves calculated on formula

 2. For red light multiply values by 0.15

 3. See collective notes at Paragraph 9.11.1 for Figure 9.11‑1 to Figure 9.11‑10.

Figure 9.11‑9: Isocandela Diagram for High Intensity Runway Centreline Lights with 15 m Longitudinal Spacing (White Light)

Notes: 1. Curves calculated on formula

 2. For red light multiply values by 0.15

 3. See collective notes at Paragraph 9.11.1 for Figure 9.11‑1 to Figure 9.11‑10.

Figure 9.11‑10: Isocandela Diagram for Runway Touchdown Zone Lights (White Light)

Notes: 1. Curves calculated on formula

 2. Toe-in 4º

 3. See collective notes at Paragraph 9.11.1 for Figure 9.11‑1 to Figure 9.11‑10.

Figure 9.11‑11: Method of Establishing Grid Points to be used for the Calculation of Average Intensity of Runway Lights specified by Figure 9.11‑1 and Figure 9.11‑2

Figure 9.11‑12: Method of Establishing Grid Points to be used for the Calculation of Average Intensity of Runway Lights specified by Figure 9.11-3 to Figure 9.11-10

Section 9.12:   Illustrations of Runway Lighting

Figure 9.12‑1: Runway Edge Lights, Threshold Lights and Runway End Lights Low and Medium Intensity for Non-Instrument and Non-Precision Approach Runways

Figure 9.12‑2: Runway Edge Lights High Intensity for Precision Approach Runways

Figure 9.12‑3: Typical Runway Threshold and Runway End Lights High Intensity for Precision Approach Runways

Figure 9.12‑4: Typical Temporarily Displaced Threshold

Figure 9.12‑5: Typical Stopway Lights

Figure 9.12‑6: Typical Turning Area Edge Lights

Figure 9.12‑7: Typical Light Layout Where Runway Pavement is 23 m or 18 m wide

Section 9.13:   Taxiway Lighting

9.13.1              Provision of Taxiway Centreline Lights

9.13.1.1         Unless the aerodrome has light traffic density, a taxiway intended for use in RVR conditions less than a value of 350 m must have centreline lights that provide continuous guidance between the runway centreline and the apron.

9.13.1.2         A taxiway intended for use at night in RVR conditions of between 350 m and 1 200 m must have centreline lights unless the aerodrome has:

(a)         a simple layout; or

(b)         light traffic density.

9.13.1.3         Taxiway centreline lights must be used on a rapid exit taxiway.

9.13.1.4         Taxiway centreline lights may be used in other cases, if the aerodrome chooses.  At aerodromes where the layout is complex, the use of taxiway centreline lights would be beneficial for surface movement.

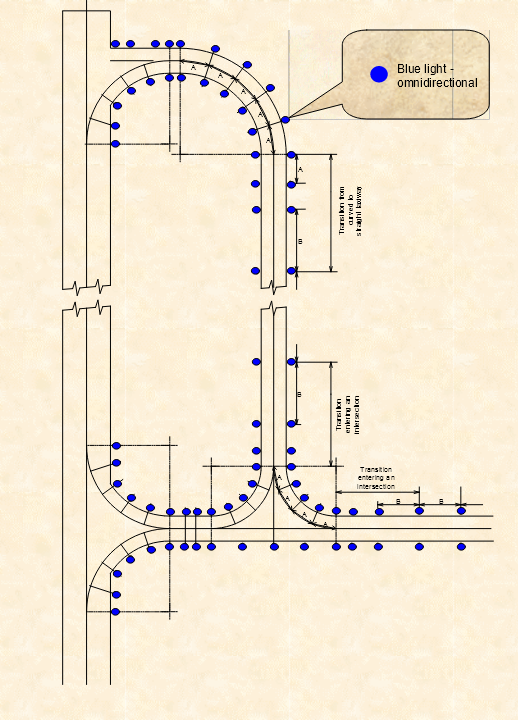

9.13.2              Provision of Taxiway Edge Lights

9.13.2.1         Except for Paragraphs 9.13.3.1 and 9.13.4.1, taxiway edge lights must be provided at the edges of a taxiway and holding bays, intended for use at night and not provided with centreline lights.

9.13.2.2         Where additional visual cues are required to delineate apron edges at night, taxiway edge lights may be used.  Examples of where this requirement may occur include, but are not limited to:

(a)         aprons where taxi guidelines and aircraft parking position marking are not provided;

(b)         aprons where apron floodlighting provides inadequate illumination at the edge of the apron; and

(c)          where the edge of the apron is difficult to distinguish from the surrounding area at night.

9.13.3              Taxiway Markers

9.13.3.1         For code letter A or B taxiways, retroreflective taxiway centreline or edge markers may be used instead of taxiway centreline or edge lights, provided at least 1 taxiway from the runway to the apron has taxiway centreline or edge lights.

9.13.3.2         If taxiway centreline lights are not provided, taxiway centreline markers may be used to improve guidance on the taxiway, or to supplement:

(a)         taxiway centreline marking; or

(b)         taxiway edge markers or taxiway edge lights.

9.13.3.3         If taxiway edge lights are not provided, taxiway edge markers may be used to improve guidance on the taxiway, or to supplement:

(a)         taxiway edge marking; or

(b)         taxiway centreline markers or taxiway centreline lights.

9.13.4              Apron Taxiway Lighting

9.13.4.1         Taxiway lights are not required for an apron taxiway if the apron taxiway is illuminated by apron floodlighting meeting the standards specified in Section 9.16.

9.13.5              Use of Different Types of Taxiway Lights
